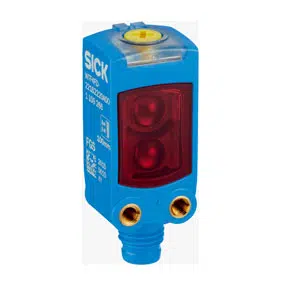

Sick WTF4FD-22161220A00 Photoelectric Sensor
The Sick WTF4FD-22161220A00 Photoelectric Sensor offers a Foreground suppression, Rectangular design, 0 mm sensing range, PinPoint LED light source, Push-pull: PNP/NPN output, and Male connector M8, 4-pin connection. Manufactured by Sick under the Sick Photoelectric Sensor category, this model belongs to the W4 Series.
| Brand | Sick |
| Product Type | Photoelectric Sensor |
| Model Number | WTF4FD-22161220A00 |
Sick WTF4FD-22161220A00 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Foreground suppression |
| Sensing range min. | 0 mm |
| Sensing range max. | 100 mm |
| Light source | PinPoint LED |
| Type of light | Visible red light |
| Shape of light spot | Point-shaped, Consisting of two parallel light spots |
| Light spot size (distance) | 2 mm x 2 mm (50 mm) |
| Wave length | 635 nm |
| Smallest detectable object (MDO) typ. | 0.1 mm (At 50 mm distance (object with 90% remission (complies with standard white according to DIN 5033))) |
| Adjustment | Teach-Turn adjustment, IO-Link |
| Special applications | Detecting flat objects |
| Indication | LED blue, LED green, LED yellow |
| Supply voltage UB | 10 V DC ... 30 V DC 1) |
| Ripple | < 5 Vpp |
| Usage category | DC-12 (According to EN 60947-5-2) DC-13 (According to EN 60947-5-2) |
| Current consumption | ≤ 20 mA, without load. At UB = 24 V |
| Protection class | III |
| Digital output Number | 2 (Complementary) |
| Output type | Push-pull: PNP/NPN |
| Signal voltage PNP HIGH/LOW | Approx. UB-2.5 V / 0 V |
| Signal voltage NPN HIGH/LOW | Approx. UB / < 2.5 V |
| Output current Imax. | ≤ 100 mA |
| Circuit protection outputs | Reverse polarity protected Overcurrent protected Short-circuit protected |
| Response time | ≤ 650 µs |
| Switching frequency | 750 Hz 3) |
| Housing | Rectangular |
| Design detail | Flat |
| Dimensions (W x H x D) | 16 mm x 40.1 mm x 12.1 mm |
| Connection | Male connector M8, 4-pin |
| Conductor size | - |
| Cable diameter | - |
| Length of cable (L) | - |
| Cable | - |
| Housing material | Plastic, VISTAL® |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP66 (EN 60529), IP67 (EN 60529) |
| Ambient operating temperature | –40 °C ... +60 °C |
| Ambient temperature, storage | –40 °C ... +75 °C |
Get A Quote for Sick 750 Hz Frequency Photoelectric Sensor WTF4FD-22161220A00 part no: 1105423 at the best price. Here are the brief Technical Specifications of WTF4FD-22161220A00, 1105423 are Photoelectric proximity sensor, Foreground suppression, 100 mm sensing range, PinPoint LED Light source, Visible red light, Point-shaped, Consisting of two parallel light spots Light spot, 2 mm x 2 mm (50 mm) line spot size, 635 nm wave length, 10 V DC ... 30 V DC Supply voltage, < 5 Vpp ripple, ≤ 20 mA, without load. At UB = 24 V current consumption, Push-pull: PNP/NPN output, ≤ 100 mA output current, ≤ 650 µs response time, 750 Hz frequency, Rectangular housing, Flat design, 16 mm x 40.1 mm x 12.1 mm dimensions, Male connector M8, 4-pin. It's Time to get a Quote for your requirement of Sick 750 Hz Frequency Photoelectric Sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
