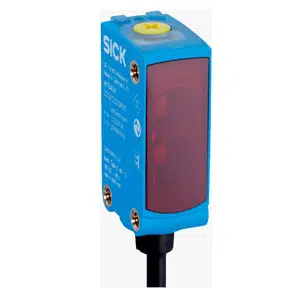

Sick WTB4SP-1H162120A00 Photoelectric Sensor
The Sick WTB4SP-1H162120A00 Photoelectric Sensor offers a Background suppression, Rectangular design, 4 mm sensing range, PinPoint LED light source, Push-pull: PNP/NPN output, and Cable, 4-wire connection. Manufactured by Sick under the Sick Photoelectric Sensor category, this model belongs to the W4 Series.
| Brand | Sick |
| Product Type | Photoelectric Sensor |
| Model Number | WTB4SP-1H162120A00 |
Sick WTB4SP-1H162120A00 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression |
| Sensing range min. | 4 mm |
| Sensing range max. | 250 mm |
| Light source | PinPoint LED |
| Type of light | Visible red light |
| Shape of light spot | Point-shaped |
| Light spot size (distance) | 4 mm (150 mm) |
| Wave length | 635 nm |
| Smallest detectable object (MDO) typ. | 0.2 mm (at 180 mm distance) |
| Adjustment | Teach-Turn adjustment, IO-Link |
| Special applications | - |
| Indication | LED blue, LED green, LED yellow |
| Supply voltage UB | 10 V DC ... 30 V DC 1) |
| Ripple | < 5 Vpp |
| Usage category | DC-12 (According to EN 60947-5-2) DC-13 (According to EN 60947-5-2) |
| Current consumption | ≤ 20 mA, without load. At UB = 24 V |
| Protection class | III |
| Digital output Number | 2 |
| Output type | Push-pull: PNP/NPN |
| Signal voltage PNP HIGH/LOW | Approx. UB-2.5 V / 0 V |
| Signal voltage NPN HIGH/LOW | Approx. UB / < 2.5 V |
| Output current Imax. | ≤ 100 mA |
| Circuit protection outputs | Reverse polarity protected Overcurrent protected Short-circuit protected |
| Response time | ≤ 500 µs |
| Switching frequency | 1,000 Hz |
| Housing | Rectangular |
| Design detail | Slim |
| Dimensions (W x H x D) | 12.1 mm x 41.9 mm x 18.6 mm |
| Connection | Cable, 4-wire |
| Conductor size | 0.14 mm² |
| Cable diameter | Ø 3.4 mm |
| Length of cable (L) | 2 m |
| Cable | Plastic, PVC |
| Housing material | Plastic, VISTAL® |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP66 (EN 60529), IP67 (EN 60529) |
| Ambient operating temperature | –40 °C ... +60 °C |
| Ambient temperature, storage | –40 °C ... +75 °C |
Get A Quote for Sick 250 mm Photoelectric Sensor WTB4SP-1H162120A00 part no: 1139081 at the best price. Here are the brief Technical Specifications of WTB4SP-1H162120A00, 1139081 are Photoelectric proximity sensor, Background suppression, 250 mm sensing range, PinPoint LED Light source, Visible red light, Point-shaped Light spot, 4 mm (150 mm) line spot size, 635 nm wave length, 10 V DC ... 30 V DC Supply voltage, < 5 Vpp ripple, ≤ 20 mA, without load. At UB = 24 V current consumption, Push-pull: PNP/NPN output, ≤ 100 mA output current, ≤ 500 µs response time, 1,000 Hz frequency, Rectangular housing, Slim design, 12.1 mm x 41.9 mm x 18.6 mm dimensions, Plastic, PVC Cable, 4-wire, 2 m cable length. It's Time to get a Quote for your requirement of Sick 250 mm Photoelectric Sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
