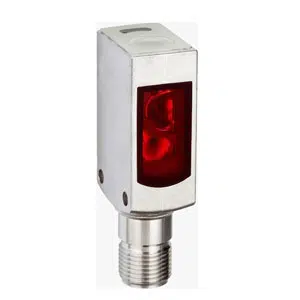

Sick WTB4SL-3N1162V Photoelectric Sensor
The Sick WTB4SL-3N1162V Photoelectric Sensor provides 25β300 mm sensing range with laser background suppression for detecting small objects. It features NPN output, light/dark switching, β€ 0.5 ms response time, and a slim stainless steel V4A housing suitable for washdown applications. The visible red laser spot, 2 m PVC cable, and IP66/67/68/69K protection ensure stable operation in demanding environments. Explore Sick, view Photoelectric Sensors, and learn more about the W4 Series.
| Brand | Sick |
| Product Type | Photolectric Sensor |
| Model Number | WTB4SL-3N1162V |
Sick WTB4SL-3N1162V Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression |
| Sensing range max. | 25 mm ... 300 mm |
| Sensing range | 25 mm ... 300 mm |
| Light source | Laser 2) |
| Type of light | Visible red light |
| Light spot size (distance) | Γ 1 mm (170 mm) |
| Wave length | 650 nm |
| Adjustment | Single teach-in button |
| Special applications | Hygienic and washdown zones, Detecting small objects |
| Housing design | Washdown 3) |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 Vpp 2) |
| Current consumption | 30 mA 3) |
| Protection class | III |
| Digital Output type | NPN 4) |
| Switching mode | Light/dark switching 4) |
| Output current Imax. | β€ 100 mA |
| Response time | β€ 0.5 ms 5) |
| Switching frequency | 1,000 Hz 6) |
| Housing | Rectangular |
| Design detail | Slim |
| Dimensions (W x H x D) | 15.3 mm x 55.4 mm x 22.2 mm |
| Connection | PVC Cable, 2 m length, 4-wire |
| Housing material | Stainless steel, Stainless steel V4A (1.4404, 316L) |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP66, IP67, IP68, IP69K |
| Ambient operating temperature | β10 Β°C ... +50 Β°C |
| Ambient temperature, storage | β30 Β°C ... +70 Β°C |
| Weight | 80 g |
The Sick WTB4SL-3N1162V Photoelectric Sensor is designed for precise detection using 25β300 mm sensing range, laser background suppression, and a 1 mm red-light spot for small-object identification. As part of the Sick W4 Series, it supports NPN switching and operates reliably in hygienic and washdown environments. Its stainless steel V4A housing and IP69K protection make it suitable for industrial automation applications requiring durability and consistent response.
The Sick WTB4SL-3N1162V Photoelectric Sensor is commonly used on conveyors, packaging lines, assembly systems, and material handling equipment. Its fast β€ 0.5 ms response time allows stable detection of small or fast-moving objects. The sealed housing, 2 m cable, and rectangular slim design support reliable installation in areas exposed to moisture, cleaning chemicals, or variable lighting conditions.
The Sick WTB4SL-3N1162V Photoelectric Sensor delivers dependable performance through its laser-based sensing, stainless steel construction, and stable output behavior. With its clear specifications and strong environmental protection, it functions effectively in demanding industrial tasks. Sickβs proven design and the W4 Series characteristics ensure long-term reliability across Indian automation environments.
