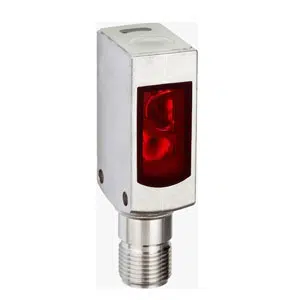

WTB4S-3P3162V: 1046387 - Sick 350mm Photoelectric Proximity Sensor
| Dimensions (W x H x D) | 15.25 mm x 49.2 mm x 22.2 mm |
| Light Source | PinPoint LED |
| Digital Output Type | PNP |
| Connection | PVC Cable, 150 mm length with connector M8, 3-pin |
Sick 350mm Photoelectric Proximity Sensor WTB4S-3P3162V, 1046387 Technical Specifications:
| Specification | Value |
|---|---|
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression |
| Sensing range max. | 4 mm ... 500 mm |
| Sensing range | 10 mm ... 350 mm |
| Light source | PinPoint LED |
| Type of light | Visible red light |
| Light spot size (distance) | Γ 6.5 mm (150 mm) |
| Wave length | 650 nm |
| Adjustment | Single teach-in button |
| Special applications | Hygienic and washdown zones |
| Housing design | Washdown |
| Supply voltage UB | 10 V DC ... 30 V DC 1) |
| Ripple | < 5 Vpp 2) |
| Current consumption | 30 mA 3) |
| Protection class | III |
| Digital Output type | PNP |
| Switching mode | Light switching |
| Output current Imax. | β€ 100 mA |
| Response time | < 0.5 ms 4) |
| Switching frequency | 1,000 Hz 5) |
| Housing | Rectangular |
| Design detail | Slim |
| Dimensions (W x H x D) | 15.25 mm x 49.2 mm x 22.2 mm |
| Connection | PVC Cable, 150 mm length with connector M8, 3-pin |
| Housing material | Stainless steel, Stainless steel V4A (1.4404, 316L) |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP66, IP67, IP68, IP69K |
| Ambient operating temperature | β30 Β°C ... +70 Β°C 1), β30 Β°C ... +60 Β°C |
| Ambient temperature, storage | β30 Β°C ... +75 Β°C |
| Weight | 50 g |
Get A Quote for Sick 350mm Photoelectric Proximity Sensor WTB4S-3P3162V part no: 1046387 at the best price. Here are the brief Technical Specifications of WTB4S-3P3162V, 1046387 are Photoelectric proximity sensor, Background suppression, 10 mm ... 350 mm sensing range, PinPoint LED Light source, Visible red light, Γ 6.5 mm (150 mm) Light spot size, 650 nm wave length, Hygienic and washdown zones special applications, Washdown housing design, 10 V DC ... 30 V DC 1) Supply voltage, < 5 Vpp 2) ripple, 30 mA 3) current consumption, PNP output, Light switching, β€ 100 mA output current, < 0.5 ms 4) response time, 1,000 Hz 5) frequency, Rectangular housing, Slim design, 15.25 mm x 49.2 mm x 22.2 mm dimensions, PVC Cable, 150 mm length with connector M8, 3-pin. It's Time to get a Quote for your requirement of Sick 350mm Photoelectric Proximity Sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
