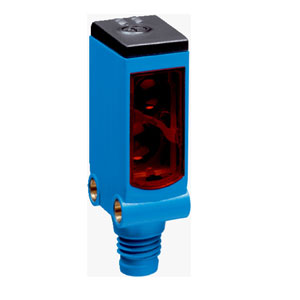

Sick WTB4S-3P3161 Photoelectric Sensor
The Sick WTB4S-3P3161 Photoelectric Sensor offers a Rectangular design, 650 nm sensing range, PinPoint LED light source, PNP output, and β40 Β°C ... +60 Β°C connection. Manufactured by Sick under the Sick Photoelectric Sensor category, this model belongs to the WL Series.
| Brand | Sick |
| Product Type | Photoelectric Sensor |
| Model Number | WTB4S-3P3161 |
Sick WTB4S-3P3161 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric retro-reflective sensor |
| Functional principle detail | Background suppression |
| Sensing range max. | 4 mm ... 180 mm |
| Sensing range | 10 mm ... 180 mm |
| Light source | PinPoint LED |
| Type of light | Visible red light |
| Light spot size (distance) | Γ 6.5 mm (150 mm) |
| Wave length | 650 nm |
| Adjustment | Potentiometer, 5 turns |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 Vpp |
| Current consumption | 20 mA 3) |
| Protection class | III |
| Digital Output type | PNP |
| Switching mode | Light switching |
| Output current Imax. | β€ 100 mA |
| Response time | < 0.5 ms |
| Switching frequency | 1,000 Hz |
| Housing | Rectangular |
| Design detail | Slim |
| Dimensions (W x H x D) | 12.2 mm x 41.8 mm x 17.3 mm |
| Connection | Cable with connector M8, 3-pin |
| Housing material | Plastic, ABS |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP67, IP66 |
| Ambient operating temperature | β40 Β°C ... +60 Β°C |
| Ambient temperature, storage | β40 Β°C ... +75 Β°C |
| Weight | 30 g |
The Sick WTB4S-3P3161 Photoelectric Sensor operates using a photoelectric retro-reflective principle with advanced background suppression, enabling accurate detection of objects within a sensing range of 10 mm to 180 mm. Its PinPoint LED emits a focused visible red light with a wavelength of 650 nm, forming a clear Γ 6.5 mm light spot at 150 mm. This precise light targeting helps eliminate false triggers and ensures consistent detection even in cluttered industrial areas. The sensor's 5-turn potentiometer allows for fine-tuning the detection threshold to suit specific machine or conveyor line setups.
Operating on a standard 10 V DC to 30 V DC supply with a low 20 mA current draw, the WTB4S-3P3161 is designed for efficient power use without sacrificing performance. With a fast response time of under 0.5 ms and a switching frequency of 1,000 Hz, it delivers dependable performance in high-speed automation tasks. Its PNP digital output and light switching mode make integration with industrial PLCs seamless. The sensorβs slim rectangular ABS housing measures just 12.2 mm Γ 41.8 mm Γ 17.3 mm and connects via a 3-pin M8 cable with connector, making installation both compact and secure.
Rated at IP66 and IP67, the WTB4S-3P3161 withstands harsh environments, including moisture, dust, and mechanical vibration, making it suitable for use in automotive, FMCG, and packaging industries. Its reliable operation across extreme temperatures from β40 Β°C to +60 Β°C further strengthens its credibility for long-term use. Trusted for its performance, build quality, and cost-efficiency, the Sick WTB4S-3P3161 Photoelectric Sensor is a go-to choice for maintenance engineers and OEM integrators.
