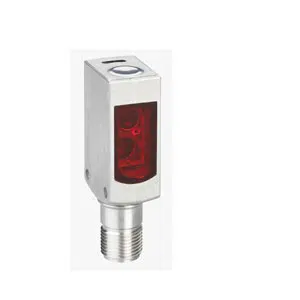

Sick WTB4S-3P2462V Photoelectric Sensor
The Sick WTB4S-3P2462V Photoelectric Sensor offers 10β350 mm sensing range with background suppression and a visible red PinPoint LED. It supports PNP light/dark switching, β€0.5 ms response time, 1,000 Hz switching frequency, and stainless steel V4A washdown housing for hygienic environments. Its slim rectangular form, M12 connector, and IP66/67/68/69K rating ensure dependable installation. Explore Sick, view Photoelectric Sensors, and learn about the W4 Series.
| Brand | Sick |
| Product Type | Photolectric Sensor |
| Model Number | WTB4S-3P2462V |
Sick WTB4S-3P2462V Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression |
| Sensing range max. | 4 mm ... 500 mm |
| Sensing range | 10 mm ... 350 mm |
| Light source | PinPoint LED 2) |
| Type of light | Visible red light |
| Light spot size (distance) | Γ 6.5 mm (150 mm) |
| Wave length | 650 nm |
| Adjustment | Single teach-in button |
| Special applications | Hygienic and washdown zones |
| Housing design | Washdown |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 Vpp 2) |
| Current consumption | 30 mA 3) |
| Protection class | III |
| Digital Output type | PNP |
| Switching mode | Light/dark switching |
| Output current Imax. | β€ 100 mA |
| Response time | < 0.5 ms 4) |
| Switching frequency | 1,000 Hz 5) |
| Housing | Rectangular |
| Design detail | Slim |
| Dimensions (W x H x D) | 15.25 mm x 49.2 mm x 22.2 mm |
| Connection | Male connector M12, 4-pin |
| Housing material | Stainless steel, Stainless steel V4A (1.4404, 316L) |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP66, IP67, IP68, IP69K |
| Ambient operating temperature | β30 Β°C ... +70 Β°C , β30 Β°C ... +60 Β°C |
| Ambient temperature, storage | β30 Β°C ... +75 Β°C |
| Weight | 45 g |
The Sick WTB4S-3P2462V Photoelectric Sensor uses 10β350 mm detection, background suppression, and a 650 nm PinPoint LED for stable proximity sensing. As part of the W4 Series, it delivers reliable operation in washdown and hygienic zones due to its stainless steel V4A housing and precise optical response.
The Sick WTB4S-3P2462V Photoelectric Sensor performs well in conveyors, packaging machines, automated assembly, and detection tasks requiring consistent switching. Its fast 0.5 ms response, compact size, and durable enclosure help maintain process continuity in demanding automation environments.
The Sick WTB4S-3P2462V Photoelectric Sensor provides dependable sensing performance supported by accurate background suppression and high protection ratings. Its stainless steel construction, stable output, and proven optical design make it suitable for long-term industrial use across Indian manufacturing applications where reliability and consistency are essential.
