In most procurement cycles, WTB4S-3P2262V is considered with Sick Laser Sensor, Sick Gtb6 P4211 and P&F Photoelectric Sensor, giving decision-makers confidence that theyβve chosen the most dependable component.

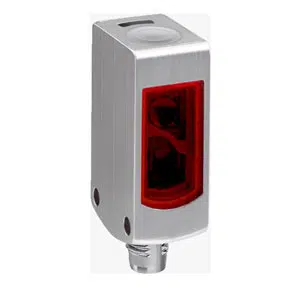

Sick WTB4S-3P2262V Photoelectric Sensor
The Sick WTB4S-3P2262V Photoelectric Sensor delivers 10β350 mm sensing range with background suppression and a visible red PinPoint LED. It features PNP light/dark switching, β€0.5 ms response time, 1,000 Hz switching frequency, and stainless steel V4A washdown housing suited for hygienic environments. Its slim rectangular form, M8 connector, and IP66/67/68/69K enclosure enhance durability and installation flexibility. Explore Sick, view Photoelectric Sensors, and learn about the W4 Series.
| Brand | Sick |
| Product Type | Photolectric Sensor |
| Model Number | WTB4S-3P2262V |
Sick WTB4S-3P2262V Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression |
| Sensing range max. | 4 mm ... 500 mm |
| Sensing range | 10 mm ... 350 mm |
| Light source | PinPoint LED 2) |
| Type of light | Visible red light |
| Light spot size (distance) | Γ 6.5 mm (150 mm) |
| Wave length | 650 nm |
| Adjustment | Single teach-in button |
| Special applications | Hygienic and washdown zones |
| Housing design | Washdown |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 Vpp 2) |
| Current consumption | 30 mA 3) |
| Protection class | III |
| Digital Output type | PNP |
| Switching mode | Light/dark switching |
| Output current Imax. | β€ 100 mA |
| Response time | < 0.5 ms 4) |
| Switching frequency | 1,000 Hz 5) |
| Housing | Rectangular |
| Design detail | Slim |
| Dimensions (W x H x D) | 15.3 mm x 55.4 mm x 22.2 mm |
| Connection | Male connector M8, 4-pin |
| Housing material | Stainless steel, Stainless steel V4A (1.4404, 316L) |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP66, IP67, IP68, IP69K |
| Ambient operating temperature | β30 Β°C ... +70 Β°C 2), β30 Β°C ... +60 Β°C |
| Ambient temperature, storage | β30 Β°C ... +75 Β°C |
| Weight | 40 g |
The Sick WTB4S-3P2262V Photoelectric Sensor uses 10β350 mm detection, background suppression, and a 650 nm PinPoint LED to ensure stable proximity sensing. As part of the W4 Series, it is built for washdown and hygienic environments where stainless steel V4A housing and fast optical response provide consistent performance in industrial automation setups.
The Sick WTB4S-3P2262V Photoelectric Sensor is suited for conveyors, packaging equipment, assembly stations, and object presence detection. Its reliable switching behavior, compact housing, and fast 0.5 ms response help maintain continuous flow in automated processes. The IP69K enclosure withstands cleaning, moisture, and demanding production conditions.
The Sick WTB4S-3P2262V Photoelectric Sensor combines precise sensing, durable materials, and dependable operation for long-term industrial use. With consistent optical alignment, high protection ratings, and proven background suppression, it supports reliable detection across Indian manufacturing environments. These attributes reinforce its suitability for engineers requiring stable proximity sensing performance.
