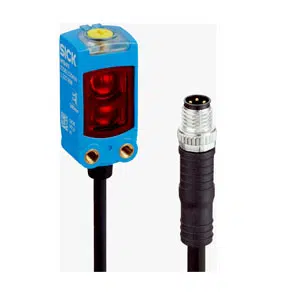

Sick WTB4FA-97311120ZZZ Photoelectric Sensor
The Sick WTB4FA-97311120ZZZ Photoelectric Sensor offers a Background suppression, MultiPulse, LineSpot technology, Rectangular design, 7 mm sensing range, PinPoint LED light source, Push-pull: PNP/NPN output, and Cable with connector M8, 3-pin, with knurled nuts, 338 mm connection. Manufactured by Sick under the Sick Photoelectric Sensor category, this model belongs to the W4 Series.
| Brand | Sick |
| Product Type | Photoelectric Sensor |
| Model Number | WTB4FA-97311120ZZZ |
Sick WTB4FA-97311120ZZZ Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression, MultiPulse, LineSpot technology |
| Sensing range min. | 7 mm |
| Sensing range max. | 150 mm |
| Light source | PinPoint LED |
| Type of light | Visible red light |
| Shape of light spot | Line-shaped |
| Light spot size (distance) | 1.4 mm x 19 mm (50 mm) |
| Wave length | 635 nm |
| Smallest detectable object (MDO) typ. | 0.1 mm (At 30 mm distance (object with 90% remission (complies with standard white according to DIN 5033))) |
| Adjustment | Teach-Turn adjustment |
| Special applications | MultiPulse: sensor with self-monitoring |
| Indication | LED blue, LED green, LED yellow |
| Supply voltage UB | 10 V DC ... 30 V DC 1) |
| Ripple | < 5 Vpp |
| Usage category | DC-12 (According to EN 60947-5-2) DC-13 (According to EN 60947-5-2) |
| Current consumption | ≤ 25 mA, without load. At UB = 24 V |
| Protection class | III |
| Digital output Number | 1 |
| Output type | Push-pull: PNP/NPN |
| Signal voltage PNP HIGH/LOW | Approx. UB-2.5 V / 0 V |
| Signal voltage NPN HIGH/LOW | Approx. UB / < 2.5 V |
| Output current Imax. | ≤ 100 mA |
| Circuit protection outputs | Reverse polarity protected Overcurrent protected Short-circuit protected |
| Response time | ≤ 0.5 s 2) |
| Switching frequency | 2 Hz 3) |
| Housing | Rectangular |
| Design detail | Flat |
| Dimensions (W x H x D) | 16 mm x 40.1 mm x 12.1 mm |
| Connection | Cable with connector M8, 3-pin, with knurled nuts, 338 mm |
| Conductor size | 0.14 mm² |
| Cable diameter | Ø 3.4 mm |
| Length of cable (L) | 300 mm |
| Cable | PVC |
| Housing material | Plastic, VISTAL® |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP66 (EN 60529), IP67 (EN 60529) |
| Ambient operating temperature | –40 °C ... +60 °C |
| Ambient temperature, storage | –40 °C ... +75 °C |
Give Us a Call for Sick 3.4 mm Photoelectric Sensor WTB4FA-97311120ZZZ part no: 1127216 at the lowest pricing. In-depth Technical Analysis of WTB4FA-97311120ZZZ, 1127216 featurePhotoelectric proximity sensor, Background suppression, MultiPulse, LineSpot technology, 150 mm sensing range, PinPoint LED Light source, Visible red light, Line-shaped Light spot, 1.4 mm x 19 mm (50 mm) line spot size, 635 nm wave length, 10 V DC ... 30 V DC Supply voltage, < 5 Vpp ripple, ≤ 25 mA, without load. At UB = 24 V current consumption, Push-pull: PNP/NPN output, ≤ 100 mA output current, ≤ 0.5 s response time, 2 Hz frequency, Rectangular housing, Flat design, 16 mm x 40.1 mm x 12.1 mm dimensions, PVC Cable with connector M8, 3-pin, with knurled nuts, 338 mm, 300 mm cable length. Elevate Your Project with a Quote for your requirement of Sick 3.4 mm Photoelectric Sensor. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
