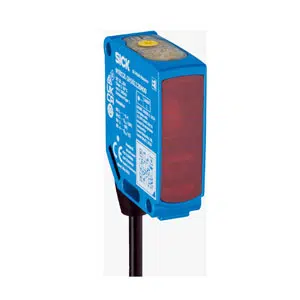

Sick WTB12L-1H161120A00 Photoelectric Sensor
The Sick WTB12L-1H161120A00 Photoelectric Sensor offers a Photoelectric proximity sensor , 850 mm sensing range, Laser light source, - output, and Cable, 4-wire, 2 m connection. Manufactured by Sick under the Sick Photoelectric Sensor category, this model belongs to the W12 Series.
| Brand | Sick |
| Product Type | Photolectric Sensor |
| Model Number | WTB12L-1H161120A00 |
Sick WTB12L-1H161120A00 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression |
| Sensing range max. | 850 mm |
| Sensing range | - |
| Polarisation filters | - |
| Light source | Laser |
| Type of light | Visible red light |
| Light spot size (distance) | 2.2 mm x 1.2 mm (300 mm) |
| Wave length | 655 nm |
| Adjustment | Teach-Turn adjustment, IO-Link |
| Angle of dispersion | - |
| Special applications | Detecting small objects, Detection of objects moving at high speeds, Detecting perforated objects |
| Items supplied | - |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | β€ 5 V |
| Current consumption | β€ 14 mA, without load. At UB = 24 V |
| Protection class | III |
| Digital Output type | Push-pull: PNP/NPN |
| Switching mode | - |
| Signal voltage PNP HIGH/LOW | Approx. UB-2.5 V / 0 V |
| Output current Imax. | β€ 100 mA |
| Response time | β€ 500 Β΅s |
| Switching frequency | 1,000 Hz |
| Output function | - |
| Special feature | - |
| Housing | Rectangular |
| Dimensions (W x H x D) | 15.6 mm x 49.5 mm x 43.1 mm |
| Connection | Cable, 4-wire, 2 m |
| Housing material | Metal, zinc diecast |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP66 (EN 60529), IP67 (EN 60529), IP69 (EN 60529) |
| Ambient operating temperature | β20 Β°C ... +55 Β°C |
| Ambient temperature, storage | β40 Β°C ... +70 Β°C |
| Weight | Approx. 132 g |
Mail Us for your needs in Sick 850 mm Photoelectric Sensor WTB12L-1H161120A00 part no: 1126069 with budget-friendly prices. The Main Technical Parameters of WTB12L-1H161120A00, 1126069 include Photoelectric proximity sensor, Background suppression, - sensing range, Laser light source, Visible red light, 2.2 mm x 1.2 mm (300 mm) light spot size, 655 nm wave length, 10 V DC ... 30 V DC supply voltage, β€ 5 V ripple, β€ 14 mA, without load. At UB = 24 V current consumption, Push-pull: PNP/NPN, - output, - , β€ 100 mA, β€ 500 Β΅s response time, 1,000 Hz frequency, Rectangular housing, 15.6 mm x 49.5 mm x 43.1 mm dimensions, Cable, 4-wire, 2 m. Customize Your Experience with a Quote for your requirement of Sick 850 mm Photoelectric Sensor. Experience the difference with our competitive pricing and superior support over other Suppliers.
