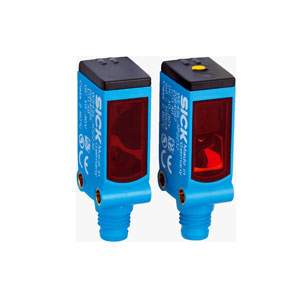

Sick WSE4SL-3P2237 Photoelectric Sensor
The Sick WSE4SL-3P2237 Photoelectric Sensor offers a Rectangular design, 650 nm sensing range, Laser light source, PNP output, and β10 Β°C ... +50 Β°C connection. Manufactured by Sick under the Sick Photoelectric Sensor category, this model belongs to the WL Series.
| Brand | Sick |
| Product Type | Photoelectric Sensor |
| Model Number | WSE4SL-3P2237 |
Sick WSE4SL-3P2237 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Through-beam photoelectric sensor |
| Functional principle detail | - |
| Sensing range max. | 0 m ... 60 m |
| Sensing range | 0 m ... 50 m |
| Light source | Laser |
| Type of light | Visible red light |
| Light spot size (distance) | Γ 1 mm (500 mm) |
| Wave length | 650 nm |
| Adjustment | Single teach-in button |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 Vpp |
| Current consumption | 30 mA 3) |
| Protection class | III |
| Digital Output type | PNP |
| Switching mode | Light/dark switching |
| Output current Imax. | β€ 100 mA |
| Response time | β€ 0.5 ms |
| Switching frequency | 1,000 Hz 6) |
| Housing | Rectangular |
| Design detail | Slim |
| Dimensions (W x H x D) | 12.2 mm x 41.8 mm x 17.3 mm |
| Connection | Male connector M12, 4-pin |
| Housing material | Plastic, Novodur |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP66, IP67 |
| Ambient operating temperature | β10 Β°C ... +50 Β°C |
| Ambient temperature, storage | β30 Β°C ... +70 Β°C |
| Weight | 100 g |
Engineered for maximum accuracy over long distances, the Sick WSE4SL-3P2237 is a through-beam photoelectric sensor that offers a sensing range of up to 60 meters. Its core advantage lies in its laser light source with a wavelength of 650 nm, which generates a highly focused 1 mm light spot at 500 mm. This sharp beam ensures precise detection even of small or fast-moving objects, making it suitable for complex industrial setups. The sensor incorporates a simple teach-in button for easy calibration and setup in the field.
Built with robust industrial-grade materials like Novodur plastic housing and a PMMA front screen, the WSE4SL-3P2237 is rated for IP66 and IP67 protection. It withstands harsh environments, offering reliable operation between β10 Β°C and +50 Β°C. The unit supports PNP digital output and both light/dark switching modes. Its supply voltage range of 10 V DC to 30 V DC, low current consumption of 30 mA, and fast response time of β€ 0.5 ms make it highly compatible with PLC-controlled systems. With a 1,000 Hz switching frequency, it ensures seamless integration into high-speed production lines.
The sensor's compact size (12.2 mm Γ 41.8 mm Γ 17.3 mm) and M12 4-pin male connector simplify mounting and maintenance. Trusted by OEMs and factory automation specialists worldwide, the Sick WSE4SL-3P2237 Photoelectric Sensor offers unbeatable precision, durability, and ease of use.
