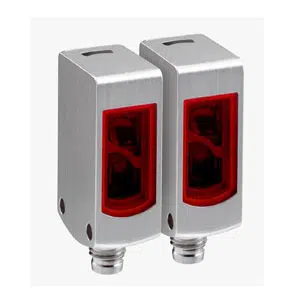

Sick WSE4S-3N2430V Photoelectric Sensor
The Sick WSE4S-3N2430V Photoelectric Sensor offers a Rectangular design, 650 nm sensing range, PinPoint LED light source, NPN output, and β30 Β°C ... +70 Β°C , β30 Β°C ... +60 Β°C connection. Manufactured by Sick under the Sick Photoelectric Sensor category, this model belongs to the WL Series.
| Brand | Sick |
| Product Type | Photoelectric Sensor |
| Model Number | WSE4S-3N2430V |
Sick WSE4S-3N2430V Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Through-beam photoelectric sensor |
| Functional principle detail | - |
| Sensing range max. | 1 m ... 5 m |
| Sensing range | 1 m ... 4.5 m |
| Light source | PinPoint LED |
| Type of light | Visible red light |
| Light spot size (distance) | Γ 50 mm (2 m) |
| Wave length | 650 nm |
| Adjustment | None |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 Vpp |
| Current consumption | 20 mA, 20 mA 3) |
| Protection class | III |
| Digital Output type | NPN |
| Switching mode | Light/dark switching |
| Output current Imax. | β€ 100 mA |
| Response time | < 0.5 ms 3) |
| Switching frequency | 200 Hz |
| Housing | Rectangular |
| Design detail | Slim |
| Dimensions (W x H x D) | 15.25 mm x 49.2 mm x 22.2 mm |
| Connection | Male connector M12, 4-pin |
| Housing material | Stainless steel, Stainless steel V4A (1.4404, 316L) |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP66, IP67, IP68, IP69K |
| Ambient operating temperature | β30 Β°C ... +70 Β°C , β30 Β°C ... +60 Β°C |
| Ambient temperature, storage | β30 Β°C ... +75 Β°C |
| Weight | 45 g |
