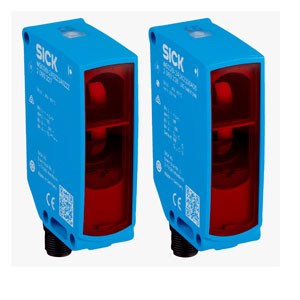

Sick WSE26P-24162100A00 Photoelectric Sensor
The Sick WSE26P-24162100A00 Photoelectric Sensor offers a 60 m sensing range with a PinPoint LED and visible red light output. This through-beam device provides push-pull PNP/NPN outputs, IO-Link adjustment, 1,000 Hz switching frequency, and IP66/IP67/IP69 enclosure ratings for reliable operation. Explore more Sick products at Sick Sensors, view all Sick Photoelectric Sensors at Sick Photoelectric Sensors, and check the WSE Series details at Sick WSE Series.
| Brand | Sick |
| Product Type | Photoelectric Sensor |
| Model Number | WSE26P-24162100A00 |
Sick WSE26P-24162100A00 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Through-beam photoelectric sensor |
| Sensing range min. | 0 m |
| Sensing range max. | 60 m |
| Light source | PinPoint LED |
| Type of light | Visible red light |
| Shape of light spot | Point-shaped |
| Light spot size (distance) | Ø 115 mm (15 m) |
| Wave length | 635 nm |
| Adjustment | IO-Link, Wire/pin |
| Indication | LED blue, LED green, LED yellow |
| Supply voltage UB | 10 V DC ... 30 V DC 1) |
| Ripple | ≤ 5 Vpp |
| Usage category | DC-12 (According to EN 60947-5-2), DC-13 (According to EN 60947-5-2) |
| Current consumption, sender & Receiver | ≤ 30 mA, < 50 mA, without load. At UB = 24 V, ≤ 30 mA, < 50 mA, without load. At UB = 24 V |
| Protection class | III |
| Digital output Number | 2 (Complementary) |
| Output type | Push-pull: PNP/NPN |
| Signal voltage PNP HIGH/LOW | Approx. UB-2.5 V / 0 V |
| Signal voltage NPN HIGH/LOW | Approx. UB / < 2.5 V |
| Output current Imax. | ≤ 100 mA |
| Circuit protection outputs | Reverse polarity protected, Overcurrent and short-circuit protected |
| Response time | ≤ 500 µs 2) |
| Repeatability (response time) | 150 µs |
| Switching frequency | 1,000 Hz 3) |
| Housing | Rectangular |
| Dimensions (W x H x D) | 24.6 mm x 82.5 mm x 53.3 mm |
| Connection | Male connector M12, 4-pin |
| Housing material | Plastic, VISTAL® |
| Front screen material | Plastic, PMMA |
| Male connector material | Plastic, VISTAL® |
| Maximum tightening torque of the fixing screws | 1.3 Nm |
| Enclosure rating | IP66 (EN 60529), IP67 (EN 60529), IP69 (EN 60529) 1) |
| Ambient operating temperature | –40 °C ... +60 °C |
| Ambient temperature, storage | –40 °C ... +75 °C |
| Weight | Approx. 160 g |
The Sick WSE26P-24162100A00 Photoelectric Sensor is a through-beam sensing device from Sick designed for industrial automation tasks requiring long-range detection. It delivers a 60 m sensing range, uses a PinPoint LED light source, and supports push-pull PNP/NPN outputs. The model belongs to the WSE Series and operates reliably within harsh environments due to its IP66, IP67, and IP69 enclosure ratings.
This sensor is suitable for conveyors, packaging systems, automotive lines, warehousing automation, and assembly stations. Its long-range capability, stable response time of 500 µs, and 1,000 Hz switching frequency enable consistent detection over wide distances. The unit’s IO-Link adjustment and clear LED status indicators make integration easier for engineers handling fast-moving production processes.
The Sick WSE26P-24162100A00 Photoelectric Sensor combines a 60 m sensing range, durable housing, and push-pull output compatibility for dependable industrial use. Sick’s engineering quality supports continuous operation in demanding applications where accurate through-beam detection is essential. This model is well-suited for users requiring reliable performance, stable signal output, and compatibility with modern industrial control systems.
