During technical comparisons, WSE12-3V1111S01 appears alongside Sick Laser Sensor, Sick Gtb6 P4211 and P&F Photoelectric Sensor so engineers assess signal types, ingress protection, and ambient tolerances accurately.

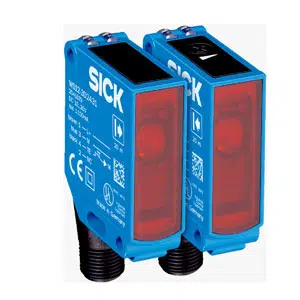

Sick WSE12-3V1111S01 Photoelectric Sensor
The Sick WSE12-3V1111S01 Photoelectric Sensor offers a Through-beam photoelectric sensor , 0 m ... 20 m sensing range, LED light source, - output, and Cable, 4-wire, 2 m connection. Manufactured by Sick under the Sick Photoelectric Sensor category, this model belongs to the W12 Series.
| Brand | Sick |
| Product Type | Photolectric Sensor |
| Model Number | WSE12-3V1111S01 |
Sick WSE12-3V1111S01 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Through-beam photoelectric sensor |
| Functional principle detail | - |
| Sensing range max. | 0 m ... 20 m |
| Sensing range | 0 m ... 15 m |
| Polarisation filters | - |
| Light source | LED |
| Type of light | Infrared light |
| Light spot size (distance) | - |
| Wave length | 850 nm |
| Adjustment | Potentiometer, 5 turns |
| Angle of dispersion | Approx. 1.5Β° |
| Special applications | - |
| Items supplied | - |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 Vpp |
| Current consumption | 30 mA |
| Protection class | III |
| Digital Output type | PNP |
| Switching mode | Dark switching |
| Signal voltage PNP HIGH/LOW | > Uv - 2,5 V / ca. 0 V |
| Output current Imax. | β€ 100 mA |
| Response time | β€ 330 Β΅s 4) |
| Switching frequency | 1,500 Hz 5) |
| Output function | - |
| Special feature | - |
| Housing | Rectangular |
| Dimensions (W x H x D) | 15.6 mm x 48.5 mm x 42 mm |
| Connection | Cable, 4-wire, 2 m |
| Housing material | Metal |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP66, IP67, IP69K |
| Ambient operating temperature | β40 Β°C ... +60 Β°C |
| Ambient temperature, storage | β40 Β°C ... +75 Β°C |
| Weight | 200 g |
Talk to Our Engineer for Sick 4-wire Through-beam Sensor WSE12-3V1111S01 part no: 1058190 with exclusive offers. Core System Specifications of WSE12-3V1111S01, 1058190 are Through-beam photoelectric sensor, -, 0 m ... 15 m sensing range, LED light source, Infrared light, - light spot size, 850 nm wave length, 10 V DC ... 30 V DC supply voltage, < 5 Vpp ripple, 30 mA current consumption, PNP, - output, Dark switching , β€ 100 mA, β€ 330 Β΅s response time, 1,500 Hz frequency, Rectangular housing, 15.6 mm x 48.5 mm x 42 mm dimensions, Cable, 4-wire, 2 m . Don't Miss Out on a Quote for your requirement of Sick 4-wire Through-beam Sensor. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
