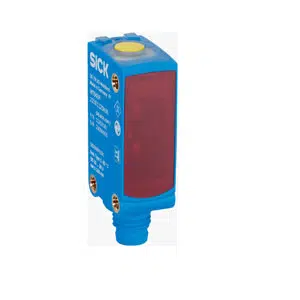

Sick WLA4SP-22162130A00 Photoelectric Sensor
The Sick WLA4SP-22162130A00 Photoelectric Sensor offers a Rectangular design, 635 nm sensing range, PinPoint LED light source, Push-pull: PNP/NPN output, and –40 °C ... +60 °C connection. Manufactured by Sick under the Sick Photoelectric Sensor category, this model belongs to the WL Series.
| Brand | Sick |
| Product Type | Photoelectric Sensor |
| Model Number | WLA4SP-22162130A00 |
Sick WLA4SP-22162130A00 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric retro-reflective sensor |
| Functional principle detail | Autocollimation |
| Sensing range max. | 7.1 m |
| Sensing range | - |
| Light source | PinPoint LED |
| Type of light | Visible red light |
| Light spot size (distance) | 150 mm (5 m) |
| Wave length | 635 nm |
| Adjustment | Teach-in button, IO-Link |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | ≤ 5 Vpp |
| Current consumption | ≤ 20 mA, without load. At UB = 24 V |
| Protection class | III |
| Digital Output type | Push-pull: PNP/NPN |
| Switching mode | - |
| Output current Imax. | ≤ 100 mA |
| Response time | ≤ 500 µs |
| Switching frequency | 1,000 Hz |
| Housing | Rectangular |
| Design detail | Slim |
| Dimensions (W x H x D) | 12.1 mm x 41.9 mm x 18.6 mm |
| Connection | Male connector M8, 4-pin |
| Housing material | Plastic, VISTAL® |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP66 (EN 60529), IP67 (EN 60529) |
| Ambient operating temperature | –40 °C ... +60 °C |
| Ambient temperature, storage | –40 °C ... +75 °C |
| Weight | - |
Reach Us by Email for Sick 635 nm Retro-reflective Sensor WLA4SP-22162130A00 part no: 1136389 at Discounted Rates. Key Technical Features of WLA4SP-22162130A00, 1136389 are Photoelectric retro-reflective sensor, Autocollimation, PinPoint LED Light source, Visible red light, 150 mm (5 m) Light spot size, 635 nm wave length, LED Indication, Detecting objects wrapped in film Special applications, 10 V DC ... 30 V DC Supply voltage, ≤ 5 Vpp, ≤ 20 mA, without load. At UB = 24 V, Push-pull: PNP/NPN output, ≤ 100 mA output current, ≤ 500 µs, 1,000 Hz, Rectangular housing, Slim design, 12.1 mm x 41.9 mm x 18.6 mm dimensions, Male connector M8, 4-pin, Plastic, VISTAL®, Plastic, PMMA, IP66 (EN 60529), IP67 (EN 60529) Enclosure rating, Navigate Your Needs with a Quote for your requirement of Sick 635 nm Retro-reflective Sensor. Our pricing and support are unrivaled, especially when compared to other Competitors.
