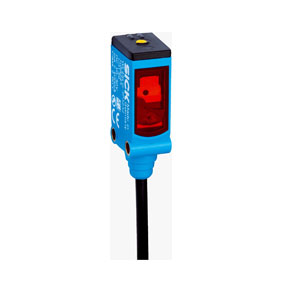

Sick WL4SLG-3N1152 Photoelectric Sensor
The Sick WL4SLG-3N1152 Photoelectric Sensor offers a Rectangular design, 650 nm sensing range, Laser 3) light source, NPN output, and β10 Β°C ... +50 Β°C connection. Manufactured by Sick under the Sick Photoelectric Sensor category, this model belongs to the WL Series.
| Brand | Sick |
| Product Type | Photoelectric Sensor |
| Model Number | WL4SLG-3N1152 |
Sick WL4SLG-3N1152 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric retro-reflective sensor |
| Functional principle detail | Autocollimation |
| Sensing range max. | 0 m ... 3.5 m |
| Sensing range | 0 m ... 2.2 m |
| Light source | Laser 3) |
| Type of light | Visible red light |
| Light spot size (distance) | Γ 0.4 mm (60 mm) |
| Wave length | 650 nm |
| Adjustment | Single teach-in button |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 Vpp |
| Current consumption | 30 mA 3) |
| Protection class | III |
| Digital Output type | NPN |
| Switching mode | Light/dark switching |
| Output current Imax. | β€ 100 mA |
| Response time | < 0.5 ms |
| Switching frequency | 1,000 Hz 6) |
| Housing | Rectangular |
| Design detail | Slim |
| Dimensions (W x H x D) | 12.2 mm x 41.8 mm x 17.3 mm |
| Connection | Cable, 4-wire, 2 m |
| Housing material | Plastic, Novodur |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP66, IP67 |
| Ambient operating temperature | β10 Β°C ... +50 Β°C |
| Ambient temperature, storage | β30 Β°C ... +70 Β°C |
| Weight | 100 g |
Give Us a Call for Sick Red LED Photo Sensor WL4SLG-3N1152 part no: 1076053 at the lowest pricing. In-depth Technical Analysis of WL4SLG-3N1152, 1076053 feature Photoelectric retro-reflective sensor, Autocollimation, 0 m ... 2.2 m sensing range, Laser Light source, Visible red light, Γ 0.4 mm (60 mm) Light spot size, 650 nm wave length, Detecting transparent objects, Detecting small objects Special applications, M3 Mounting hole, 10 V DC ... 30 V DC Supply voltage, < 5 Vpp , 30 mA , NPN output, Light/dark switching , β€ 100 mA output current, < 0.5 ms , 1,000 Hz , Rectangular housing, Slim design, 12.2 mm x 41.8 mm x 17.3 mm dimensions, Cable, 4-wire, 2 m, Plastic, Novodur, Plastic, PMMA, IP66, IP67 Enclosure rating. Elevate Your Project with a Quote for your requirement of Sick Red LED Photo Sensor. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
