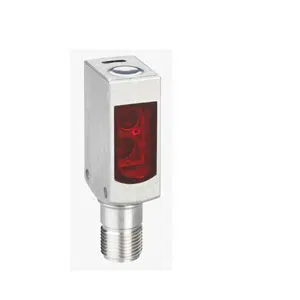

Sick WL4S-3P2432V Photoelectric Sensor
The Sick WL4S-3P2432V Photoelectric Sensor provides 0β3 m sensing range with autocollimation using a PinPoint LED visible red light. It features PNP output, light/dark switching, 0.5 ms response time, and stainless steel V4A washdown housing suited for hygienic environments. The slim rectangular body, M12 connector, and IP66/67/68/69K protection ensure stable operation in industrial applications. Explore Sick, view Photoelectric Sensors, and learn about the W4 Series.
| Brand | Sick |
| Product Type | Photolectric Sensor |
| Model Number | WL4S-3P2432V |
Sick WL4S-3P2432V Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric retro-reflective sensor |
| Functional principle detail | Autocollimation |
| Sensing range max. | 0 m ... 5 m |
| Sensing range | 0 m ... 3 m |
| Light source | PinPoint LED 2) |
| Type of light | Visible red light |
| Light spot size (distance) | Γ 45 mm (1.5 m) |
| Wave length | 650 nm |
| Adjustment | Single teach-in button |
| Special applications | Hygienic and washdown zones |
| Housing design | Washdown |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 Vpp 2) |
| Current consumption | 30 mA 3) |
| Protection class | III |
| Digital Output type | PNP |
| Switching mode | Light/dark switching |
| Output current Imax. | β€ 100 mA |
| Response time | < 0.5 ms 4) |
| Switching frequency | 1,000 Hz 5) |
| Housing | Rectangular |
| Design detail | Slim |
| Dimensions (W x H x D) | 15.25 mm x 49.2 mm x 22.2 mm |
| Connection | Male connector M12, 4-pin |
| Housing material | Stainless steel, Stainless steel V4A (1.4404, 316L) |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP66, IP67, IP68, IP69K |
| Ambient operating temperature | β30 Β°C ... +70 Β°C , β30 Β°C ... +60 Β°C |
| Ambient temperature, storage | β30 Β°C ... +75 Β°C |
| Weight | 60 g |
The Sick WL4S-3P2432V Photoelectric Sensor is a retro-reflective model with 0β3 m sensing range, autocollimation, and a PinPoint LED for precise red-light detection. Part of the Sick W4 Series, it is built for hygienic and washdown environments using a durable stainless steel V4A housing. Its fast response time and PNP output make it suitable for continuous industrial automation tasks.
The Sick WL4S-3P2432V Photoelectric Sensor is commonly applied in conveyors, packaging lines, assembly systems, and object presence verification. Its quick 0.5 ms switching supports accurate sensing of moving or reflective items. The sealed construction, M12 connector, and stable optical alignment help maintain reliable performance in washdown zones and areas subjected to frequent cleaning.
The Sick WL4S-3P2432V Photoelectric Sensor delivers consistent operation through its autocollimation principle, robust stainless steel housing, and dependable switching behavior. With clear specifications and strong protection ratings, it suits demanding industrial environments across Indian automation sectors. Sickβs engineering standards and the W4 Series design ensure long-term sensing reliability for continuous-use applications.
