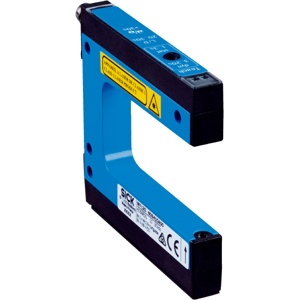

Sick WFL5-40B41CA00 Fork Sensor
The WFL5-40B41CA00 is a Sick Fork Sensor with 5 mm fork width and 42 mm fork depth detection capability. This Sick Fork Sensor uses the optical detection principle with 0.05 mm minimum detectable object, push-pull PNP/NPN switching output, 100 mA maximum output current, 40 mA current consumption, light/dark switching mode, dynamic teach-in via button and cable, M8 4-pin connector, IP65 aluminum housing, 40 µs jitter, and reverse polarity plus short-circuit protection.
| Brand | Sick |
| Product Type | Fork Sensor |
| Model Number | WFL5-40B41CA00 |
Sick WFL5-40B41CA00 Fork Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 10 mm x 43.5 mm x 47 mm |
| Fork width | 5 mm |
| Fork depth | 42 mm |
| Minimum detectable object (MDO) | 0.05 mm |
| Adjustment | Teach-in button, cable (Teach-in, sensitivity, light/dark switching, key lock, Teach-in dynamic) |
| Teach-in mode | 1-point teach-in2-point teach-inTeach-in dynamic |
| Current consumption | 40 mA 1) |
| Switching output | Push-pull: PNP/NPN |
| Switching output (voltage) | Push-pull: PNP/NPN High = UV - < 2 V/Low: ≤ 2 V |
| Switching mode | Light/dark switching |
| Output current Imax. | 100 mA |
| Connection type | Male connector M8, 4-pin |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
| Enclosure rating | IP65 |
| Weight | Approx. 36 g ... 160 g 2) |
| Housing material | Aluminum |
| Functional principle | Optical detection principle |
| Jitter | 40 µs |
WFL5-40B41CA00 Sick Fork Sensor is engineered for precise object detection in industrial automation systems. The Sick WFL5-40B41CA00 Fork Sensor provides 5 mm fork width, 42 mm fork depth, 0.05 mm minimum detectable object, and push-pull PNP/NPN switching output. It belongs to the WFE series and supports 1-point, 2-point, and dynamic teach-in modes with light/dark switching. The IP65 aluminum housing and defined 40 µs jitter help maintain stable detection performance.
In packaging machinery, conveyor monitoring, label detection, and assembly automation, the WFL5-40B41CA00 Sick Fork Sensor enables consistent sensing of thin materials and small components. The push-pull output simplifies PLC interfacing, while 40 mA current consumption supports efficient control panel integration. The M8 4-pin connector and built-in circuit protection support reliable machine installation.
The Sick WFL5-40B41CA00 Fork Sensor combines optical detection with protected switching outputs for dependable operation. With 100 mA output capacity, specified switching voltage characteristics, and durable aluminum construction, this Sick Fork Sensor model supports repeatable and measurable performance in Indian industrial automation environments.
