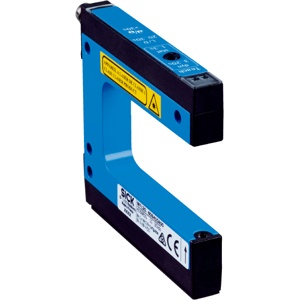

Sick WFL30-95B41CA00 Fork Sensor
The WFL30-95B41CA00 is a Sick Fork Sensor with 30 mm fork width and 95 mm fork depth detection range. This Sick Fork Sensor operates on the optical detection principle with 0.05 mm minimum detectable object, push-pull PNP/NPN switching output, 100 mA maximum output current, 40 mA current consumption, light/dark switching, 1-point, 2-point and dynamic teach-in modes, M8 4-pin connector, IP65 aluminum housing, 40 µs jitter, and reverse polarity plus short-circuit protection.
| Brand | Sick |
| Product Type | Fork Sensor |
| Model Number | WFL30-95B41CA00 |
Sick WFL30-95B41CA00 Fork Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 10 mm x 68.5 mm x 110 mm |
| Fork width | 30 mm |
| Fork depth | 95 mm |
| Minimum detectable object (MDO) | 0.05 mm |
| Adjustment | Teach-in button, cable (Teach-in, sensitivity, light/dark switching, key lock, Teach-in dynamic) |
| Teach-in mode | 1-point teach-in2-point teach-inTeach-in dynamic |
| Current consumption | 40 mA 1) |
| Switching output | Push-pull: PNP/NPN |
| Switching output (voltage) | Push-pull: PNP/NPN High = UV - < 2 V/Low: ≤ 2 V |
| Switching mode | Light/dark switching |
| Output current Imax. | 100 mA |
| Connection type | Male connector M8, 4-pin |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
| Enclosure rating | IP65 |
| Weight | Approx. 36 g ... 160 g 2) |
| Housing material | Aluminum |
| Functional principle | Optical detection principle |
| Jitter | 40 µs |
WFL30-95B41CA00 Sick Fork Sensor is configured for high-precision object detection in industrial automation systems. The Sick WFL30-95B41CA00 Fork Sensor provides 30 mm fork width, 95 mm fork depth, 0.05 mm minimum detectable object, and push-pull PNP/NPN switching output. It belongs to the WFE series and supports light/dark switching with 1-point, 2-point, and dynamic teach-in options. The IP65 aluminum housing and defined 40 µs jitter support stable machine integration.
In conveyor systems, packaging lines, and automated assembly stations, the WFL30-95B41CA00 Sick Fork Sensor enables reliable detection of thin materials, labels, and small components. The push-pull output simplifies PLC wiring while maintaining consistent switching voltage characteristics. With 40 mA current consumption and M8 4-pin connection, it integrates efficiently into control panels and OEM machinery.
The Sick WFL30-95B41CA00 Fork Sensor combines optical detection with circuit protection against reverse polarity and short circuits. With defined switching mode, 100 mA output capacity, and robust aluminum housing, this Sick Fork Sensor model is suitable for repeatable detection tasks in Indian industrial automation environments requiring consistent and measurable performance.
