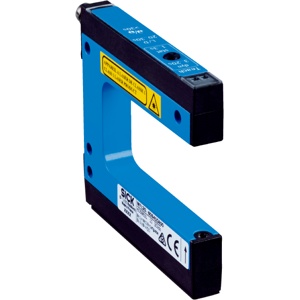

Sick WFL2-60B416 Fork Sensor
The WFL2-60B416 is a Sick Fork Sensor featuring 2 mm fork width and 59 mm fork depth for detection. This Sick Fork Sensor uses the optical detection principle with 0.05 mm minimum detectable object, PNP/NPN switching output, 100 mA maximum output current, 40 mA current consumption, light/dark switching, 2-point teach-in adjustment, M8 4-pin connector, IP65 aluminum housing, 22 µs jitter, and integrated reverse polarity and short-circuit protection.
| Brand | Sick |
| Product Type | Fork Sensor |
| Model Number | WFL2-60B416 |
Sick WFL2-60B416 Fork Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 10 mm x 40.5 mm x 74 mm |
| Fork width | 2 mm |
| Fork depth | 59 mm |
| Minimum detectable object (MDO) | 0.05 mm |
| Adjustment | Plus/minus button (Teach-in, sensitivity, light/dark switching) |
| Teach-in mode | 2-point teach-in |
| Current consumption | 40 mA 1) |
| Switching output | PNP/NPN |
| Switching output (voltage) | PNP: HIGH = UV ≤ 2 V / LOW approx. 0 VNPN: HIGH = approx. UV / LOW ≤ 2 V |
| Switching mode | Light/dark switching |
| Output current Imax. | 100 mA |
| Connection type | Male connector M8, 4-pin |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
| Enclosure rating | IP65 |
| Weight | Approx. 36 g ... 160 g 2) |
| Housing material | Aluminum |
| Functional principle | Optical detection principle |
| Jitter | 22 µs |
WFL2-60B416 Sick Fork Sensor is designed for compact and precise detection tasks in industrial automation systems. The Sick WFL2-60B416 Fork Sensor provides 2 mm fork width, 59 mm fork depth, 0.05 mm minimum detectable object, and PNP/NPN switching output. It belongs to the WFE series and supports light/dark switching with 2-point teach-in configuration. With IP65 enclosure rating and 100 mA output current, it integrates directly into PLC-based control panels.
In packaging lines, conveyor assemblies, and automated inspection stations, the WFL2-60B416 Sick Fork Sensor ensures stable detection of thin labels, films, and small mechanical parts. The narrow 2 mm fork width enables installation in restricted spaces. Optical detection combined with defined switching voltage characteristics supports consistent signal output in continuous production environments.
The Sick WFL2-60B416 Fork Sensor combines electrical protection features with aluminum housing for reliable long-term industrial operation. With 40 mA current consumption and 22 µs jitter, the model supports fast and repeatable switching performance. As part of the Sick fork sensor portfolio, WFL2-60B416 is suitable for OEMs and system integrators in Indian industrial automation applications requiring accurate object detection.
