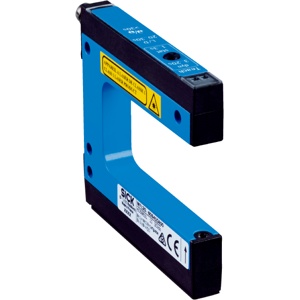

Sick WFL15-95B41CA00 Fork Sensor
The WFL15-95B41CA00 is a Sick Fork Sensor featuring 15 mm fork width and 0.05 mm minimum detectable object precision. This Sick Fork Sensor operates on the optical detection principle with 95 mm fork depth, push-pull PNP/NPN switching output, 100 mA maximum output current, 40 mA current consumption, light/dark switching, 1-point, 2-point and dynamic teach-in via button and cable, M8 4-pin connector, IP65 aluminum housing, 40 Β΅s jitter, and integrated reverse polarity and short-circuit protection.
| Brand | Sick |
| Product Type | Fork Sensor |
| Model Number | WFL15-95B41CA00 |
Sick WFL15-95B41CA00 Fork Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 10 mm x 53.5 mm x 110 mm |
| Fork width | 15 mm |
| Fork depth | 95 mm |
| Minimum detectable object (MDO) | 0.05 mm |
| Adjustment | Teach-in button, cable (Teach-in, sensitivity, light/dark switching, key lock, Teach-in dynamic) |
| Teach-in mode | 1-point teach-in2-point teach-inTeach-in dynamic |
| Current consumption | 40 mA 1) |
| Switching output | Push-pull: PNP/NPN |
| Switching output (voltage) | Push-pull: PNP/NPN High = UV - < 2 V/Low: β€ 2 V |
| Switching mode | Light/dark switching |
| Output current Imax. | 100 mA |
| Connection type | Male connector M8, 4-pin |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
| Enclosure rating | IP65 |
| Weight | Approx. 36 g ... 160 g 2) |
| Housing material | Aluminum |
| Functional principle | Optical detection principle |
| Jitter | 40 Β΅s |
WFL15-95B41CA00 Sick Fork Sensor is a precision optical sensing device designed for fixed-gap detection in industrial automation systems. The Sick WFL15-95B41CA00 Fork Sensor offers 15 mm fork width, 95 mm fork depth, 0.05 mm minimum detectable object, and push-pull PNP/NPN switching output. It belongs to the WFE series and supports light/dark switching with multiple teach-in modes. With IP65 protection and 100 mA maximum output current, it ensures stable electrical integration into PLC-controlled machines.
In conveyor lines, packaging equipment, and automated assembly stations, the WFL15-95B41CA00 Sick Fork Sensor enables accurate detection of thin labels, foils, and small components. The narrow 15 mm fork width allows compact installation, while the 95 mm fork depth supports mechanical flexibility. Push-pull output simplifies wiring in mixed PNP/NPN environments, improving compatibility with various industrial control architectures.
The Sick WFL15-95B41CA00 Fork Sensor combines defined fork geometry with optical detection stability for continuous production processes. With 40 Β΅s jitter and 40 mA current consumption, the model supports high-speed switching without signal fluctuation. As part of the Sick fork sensor portfolio, WFL15-95B41CA00 is suitable for OEMs and system integrators requiring dependable sensing performance in Indian industrial automation applications.
