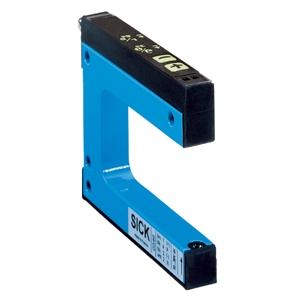

Sick WF50-60B41CA70 Fork Sensor
The Sick WF50-60B41CA70 Fork Sensor offers a 50 mm fork width, 59 mm fork depth, Push-pull: PNP/NPN output, and Male connector M8, 4-pin connection type. Manufactured by Sick under the Sick Fork Sensor category, this model belongs to the UF/WF Series.
| Brand | Sick |
| Product Type | Fork Sensor |
| Model Number | WF50-60B41CA70 |
Sick WF50-60B41CA70 Fork Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 10 mm x 80 mm x 74 mm |
| Fork width | 50 mm |
| Fork depth | 59 mm |
| Minimum detectable object (MDO) | 0.2 mm |
| Adjustment | Plus/minus button (Sensitivity, light/dark switching, key lock) |
| Current consumption | 40 mA 1) |
| Switching output | Push-pull: PNP/NPN |
| Switching output (voltage) | Push-pull: PNP/NPN High = UV - < 2 V/Low: β€ 2 V |
| Switching mode | Light/dark switching |
| Output current Imax. | 100 mA |
| Connection type | Male connector M8, 4-pin |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
| Enclosure rating | IP65 |
| Weight | Approx. 36 g ... 160 g 2) |
| Housing material | Aluminum |
| Functional principle | Optical detection principle |
| Jitter | 40 Β΅s |
