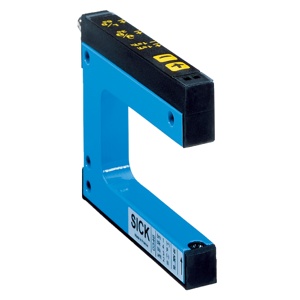

Sick WF30-60B410 Fork Sensor
The WF30-60B410 is a Sick Fork Sensor with 30 mm fork width and 59 mm fork depth detection. As part of the Sick portfolio and categorized under Sick Fork Sensor, this WFE model supports 0.2 mm minimum detectable object, PNP/NPN switching output, IP65 enclosure rating, 20 mA current consumption, 100 mA output current, M8 4-pin connector, aluminum housing, optical detection principle, light/dark switching, circuit protection, dynamic teach-in modes, and 17 µs jitter.
| Brand | Sick |
| Product Type | Fork Sensor |
| Model Number | WF30-60B410 |
Sick WF30-60B410 Fork Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 10 mm x 60 mm x 74 mm |
| Fork width | 30 mm |
| Fork depth | 59 mm |
| Minimum detectable object (MDO) | 0.2 mm |
| Adjustment | Teach-in button, cable (Teach-in, sensitivity, light/dark switching, key lock, Teach-in dynamic) |
| Teach-in mode | 1-point teach-in2-point teach-inTeach-in dynamic |
| Current consumption | 20 mA 1) |
| Switching output | PNP/NPN |
| Switching output (voltage) | PNP: HIGH = UV ≤ 2 V / LOW approx. 0 VNPN: HIGH = approx. UV / LOW ≤ 2 V |
| Switching mode | Light/dark switching |
| Output current Imax. | 100 mA |
| Connection type | Male connector M8, 4-pin |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
| Enclosure rating | IP65 |
| Weight | Approx. 36 g ... 160 g 1) |
| Housing material | Aluminum |
| Functional principle | Optical detection principle |
| Jitter | 17 µs |
The WF30-60B410 Sick Fork Sensor is configured for precise object detection in industrial automation environments. This WF30-60B410 Sick Fork Sensor integrates 30 mm fork width, 59 mm fork depth, 0.2 mm minimum detectable object, and PNP/NPN switching output to ensure stable signal output. It belongs to the WFE series and operates using an optical detection principle with selectable light/dark switching.
In packaging, conveyor tracking, and automated assembly systems, the defined fork geometry enables accurate monitoring of labels, films, and small components. The 17 µs jitter supports consistent response in high-speed processes. With IP65 enclosure rating and integrated circuit protection, the sensor is suited for industrial installations requiring dependable switching performance.
The WF30-60B410 maintains Sick engineering standards for fork sensor applications. Its aluminum housing supports mechanical stability, while 20 mA current consumption allows efficient integration into PLC-controlled systems. For applications requiring a 30 mm fork width and 59 mm detection depth, the WF30-60B410 Sick Fork Sensor delivers reliable industrial operation.
