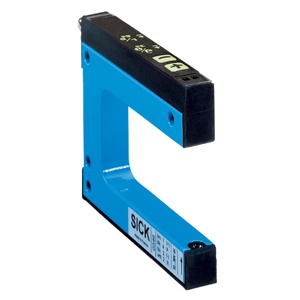

Sick WF2-95B410 Fork Sensor
The WF2-95B410 is a Sick Fork Sensor with 2 mm fork width and 95 mm fork depth for precise detection. As part of the Sick portfolio and categorized under Sick Fork Sensor, this WFE series model supports 0.2 mm minimum detectable object, PNP/NPN switching output, IP65 enclosure rating, 40 mA current consumption, 100 mA output current, M8 4-pin connector, aluminum housing, optical detection principle, light/dark switching, circuit protection, and 40 µs jitter.
| Brand | Sick |
| Product Type | Fork Sensor |
| Model Number | WF2-95B410 |
Sick WF2-95B410 Fork Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 10 mm x 32 mm x 110 mm |
| Fork width | 2 mm |
| Fork depth | 95 mm |
| Minimum detectable object (MDO) | 0.2 mm |
| Adjustment | Plus/minus button (Teach-in, sensitivity, light/dark switching, key lock) |
| Teach-in mode | 2-point teach-in |
| Current consumption | 40 mA |
| Switching output | PNP/NPN |
| Switching output (voltage) | PNP: HIGH = UV ≤ 2 V / LOW approx. 0 VNPN: HIGH = approx. UV / LOW ≤ 2 V |
| Switching mode | Light/dark switching |
| Output current Imax. | 100 mA |
| Connection type | Male connector M8, 4-pin |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
| Enclosure rating | IP65 |
| Weight | Approx. 36 g ... 160 g 1) |
| Housing material | Aluminum |
| Functional principle | Optical detection principle |
| Jitter | 40 µs |
The WF2-95B410 Sick Fork Sensor is designed for narrow-slot detection tasks in industrial automation environments. This WF2-95B410 Sick Fork Sensor integrates 2 mm fork width, 95 mm fork depth, 0.2 mm minimum detectable object, and PNP/NPN switching output for stable electrical interfacing with PLC systems. It belongs to the WFE series and operates using an optical detection principle with selectable light/dark switching.
In conveyor systems, packaging lines, and automated assembly processes, the slim fork geometry enables accurate sensing of thin labels, small tabs, and fine components. The 40 µs jitter supports consistent response in moving applications. With IP65 enclosure rating and integrated reverse polarity and short-circuit protection, the sensor maintains reliable performance in industrial settings.
The WF2-95B410 maintains Sick engineering standards for compact fork sensors requiring extended fork depth. Its aluminum housing provides mechanical durability, while electrical protection ensures operational safety. For automation applications requiring narrow fork width and dependable switching output, the WF2-95B410 Sick Fork Sensor delivers consistent detection performance.
