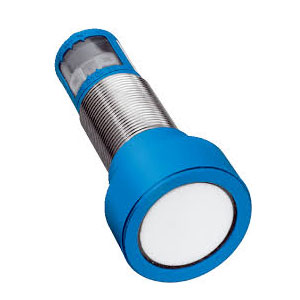

During technical comparisons, UM30-215114 appears alongside Sick Diffuse Sensor, Banner Ultrasonic Sensor and Sick Um30 214111 so engineers assess signal types, ingress protection, and ambient tolerances accurately.

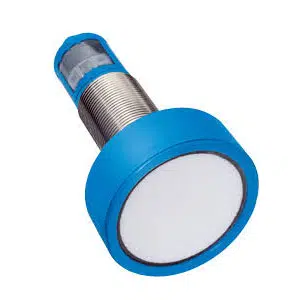

Sick UM30-215114 Ultrasonic Sensor
The Sick UM30-215114 Ultrasonic Sensor offers Cylindrical, design LED display, 2 x LED indication, Straight sending axis, Male connector, M12, 5-pin connection. Manufactured by Sick under the Sick Ultrasonic Sensor category, this model belongs to the UM Series.
| Brand | Sick |
| Product Type | Ultrasonic Sensor |
| Product | UM30-215114 |
Sick UM30-215114 Ultrasonic Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cylindrical |
| Supply voltage Vs | DC 9 V ... 30 V |
| Power consumption | β€ 2.4 W |
| Initialization time | < 300 ms |
| Housing material | Metal (nickel-plated brass, PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin) |
| Connection type | Male connector, M12, 5-pin |
| Indication | LED display, 2 x LED |
| Sending axis | Straight |
| Dimensions (W x H x D) | 65 mm x 65 mm x 105 mm |
| Enclosure rating | IP65 / IP67 |
| Weight | 270 g |
IndMALL offers Sick M30 NPN Ultrasonic Sensor UM30-215114 part no: 6037678 at attractive prices. Engineering Specifications of UM30-215114, 6037678 are Cylindrical , DC 9 V ... 30 V supply voltage, β€ 2.4 W power consumption, < 300 ms Initialization time, Metal (nickel-plated brass, PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin), Male connector, M12, 5-pin, LED display, 2 x LED Indication, Straight, 65 mm x 65 mm x 105 mm dimensions. Match Your Needs with a Quote for your requirement of Sick M30 NPN Ultrasonic Sensor. Our pricing and support are unrivaled, especially when compared to other Dealers.
