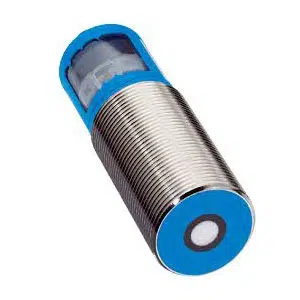

Sick UM30-212118 Ultrasonic Sensor
The Sick UM30-212118 Ultrasonic Sensor offers Cylindrical, design LED display, 2 x LED
indication, Straight sending axis, Male connector, M12, 5-pin connection. Manufactured by Sick under the Sick Ultrasonic Sensor category, this model belongs to the UM Series.
| Brand | Sick |
| Product Type | Ultrasonic Sensor |
| Product | UM30-212118 |
Sick UM30-212118 Ultrasonic Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cylindrical |
| Supply voltage Vs | DC 9 V ... 30 V |
| Power consumption | β€ 2.4 W |
| Initialization time | < 300 ms |
| Housing material | Metal (nickel-plated brass, PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin) |
| Connection type | Male connector, M12, 5-pin |
| Indication | LED display, 2 x LED |
| Sending axis | Straight |
| Dimensions (W x H x D) | 30 mm x 30 mm x 84 mm |
| Enclosure rating | IP65 / IP67 |
| Weight | 150 g |
IndMALL offers the Sick 350 mm Detection PNP Ultrasonic Sensor UM30-212118 (part no: 6036922) at the lowest pricing. Check out the UM30-212118 Datasheet for a detailed overview of technical specs, including a cylindrical design, DC 9 V ... 30 V supply voltage, β€ 2.4 W power consumption, and < 300 ms initialization time. The sensor is made of metal (nickel-plated brass, PBT), ultrasonic transducer (polyurethane foam), and glass epoxy resin. It features a male connector (M12, 5-pin), LED display with 2 x LED indication, and dimensions of 30 mm x 30 mm x 84 mm. Secure a quote now for your UM30-212118 Price requirements and get access to superior support compared to other traders. You can also request the UM30-212118 Manual to better understand its use.
