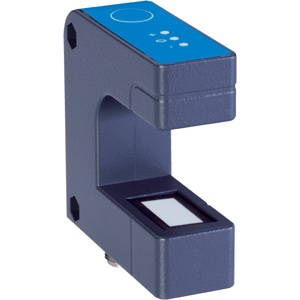

Sick UFW3-43B717ZZZ Fork Sensor
The Sick UFW3-43B717ZZZ Fork Sensor offers a 30 mm fork width, 43 mm fork depth, Push-pull: PNP/NPN output, and Male connector M12, 5-pin connection type. Manufactured by Sick under the Sick Fork Sensor category, this model belongs to the UF/WF Series.
| Brand | Sick |
| Product Type | Fork Sensor |
| Model Number | UFW3-43B717ZZZ |
Sick UFW3-43B717ZZZ Fork Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 23.5 mm x 67 mm x 67.5 mm |
| Fork width | 30 mm |
| Fork depth | 43 mm |
| Minimum detectable object (MDO) | 0.2 mm |
| Adjustment | Teach-in button, cable (One Point Adjustment, Two Point Adjustment, analog output: current/voltage, rising/falling) |
| Teach-in mode | One Point AdjustmentTwo Point Adjustment |
| Supply voltage | 20 V DC ... 30 V DC 1) |
| Ripple | < 10 % 2) |
| Current consumption | 60 mA 3) |
| Response time | 5.1 ms |
| Switching output | Push-pull: PNP/NPN |
| Switching output (voltage) | Push-pull: PNP/NPN High = UV - < 3 V/Low: β€ 3 V |
| Switching mode | Light/dark switching |
| Output current Imax. | 100 mA |
| Connection type | Male connector M12, 5-pin |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
| Enclosure rating | IP67 |
| Weight | Approx. 190 g |
| Housing material | Zinc diecastPBT |
| Ambient temperature, storage | β40 Β°C ... +85 Β°C |
| Functional principle | Optical detection principle |
| Jitter | 17 Β΅s |
