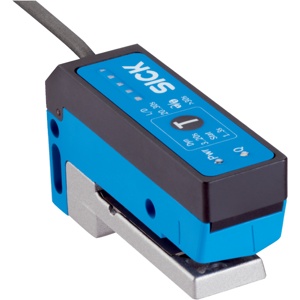

Sick UFS3-37N517 Fork Sensor
The Sick UFS3-37N517 Fork Sensor features 2.6 mm fork width, 42.5 mm fork depth, and 1.1 kHz switching frequency for label detection. The UFS3-37N517 Sick Fork Sensor operates on 10–30 V DC supply with 440 µs response time, NPN switching output, 100 mA output current, cable with M12 male connector 4-pin (0.31 m), IP65 enclosure rating, 50 mA current consumption, ultrasonic detection principle, and belongs to the WFE series under Sick within the Sick Fork Sensor category.
| Brand | Sick |
| Product Type | Fork Sensor |
| Model Number | UFS3-37N517 |
Sick UFS3-37N517 Fork Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 20 mm x 37.4 mm x 70 mm |
| Fork width | 2.6 mm |
| Fork depth | 42.5 mm |
| Minimum detectable object (MDO) | Label size: 2 mm 1)Label gap: 1 mm 1) |
| Adjustment | Teach-in button, cable (Teach-in, sensitivity, light/dark switching, Teach-in dynamic) |
| Teach-in mode | 1-point teach-in2-point teach-inTeach-in dynamic |
| Supply voltage | 10 V DC ... 30 V DC 1) |
| Ripple | < 10 % 2) |
| Current consumption | 50 mA 3) |
| Switching frequency | 1.1 kHz 4) |
| Response time | 440 µs 5) |
| Switching output | NPN |
| Switching output (voltage) | NPN: HIGH = VS / LOW ≤ 3 V |
| Switching mode | Light/dark switching |
| Output current Imax. | 100 mA 6) |
| Connection type | Cable with M12 male connector, 4-pin, 0.31 m |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
| Enclosure rating | IP65 |
| Weight | Approx. 100 g |
| Housing material | ZamakGlass fiber reinforced plastic |
| Ambient temperature, storage | –20 °C ... +70 °C |
| Functional principle | Ultrasonic detection principle |
| Jitter | 40 µs |
The UFS3-37N517 Sick Fork Sensor is designed for detecting 2 mm label sizes and 1 mm label gaps in automated systems. This model provides 2.6 mm fork width, 42.5 mm fork depth, and 1.1 kHz switching frequency with a 10–30 V DC supply. With 440 µs response time and NPN switching output, UFS3-37N517 belongs to the WFE series and supports industrial automation processes requiring consistent label sensing.
In packaging machines, conveyor-based labeling, and assembly applications, the UFS3-37N517 Sick Fork Sensor enables stable light/dark switching and reliable signal output. The ultrasonic detection principle supports consistent sensing accuracy. With IP65 enclosure rating, short-circuit protected output, reverse polarity protection, and controlled jitter of 40 µs, the sensor maintains dependable performance in production environments.
The Sick UFS3-37N517 Fork Sensor integrates easily due to its compact 20 mm x 37.4 mm x 70 mm housing and M12 male connector cable. With 100 mA maximum output current and defined electrical protection features, the UFS3-37N517 Sick Fork Sensor is structured for industrial automation use in India under the WFE series framework.
