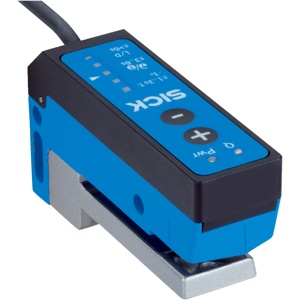

Sick UFS3-37N417 Fork Sensor
The Sick UFS3-37N417 Fork Sensor offers a 2.6 mm fork width, 42.5 mm fork depth, NPN output, and Male connector M8, 4-pin connection type. Manufactured by Sick under the Sick Fork Sensor category, this model belongs to the UF/WF Series.
| Brand | Sick |
| Product Type | Fork Sensor |
| Model Number | UFS3-37N417 |
Sick UFS3-37N417 Fork Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 20 mm x 37.4 mm x 70 mm |
| Fork width | 2.6 mm |
| Fork depth | 42.5 mm |
| Minimum detectable object (MDO) | Label size: 2 mm 1)Label gap: 1 mm 1) |
| Adjustment | Teach-in button, cable (Teach-in, sensitivity, light/dark switching, Teach-in dynamic) |
| Teach-in mode | 1-point teach-in2-point teach-inTeach-in dynamic |
| Supply voltage | 10 V DC ... 30 V DC 1) |
| Ripple | < 10 % 2) |
| Current consumption | 50 mA 3) |
| Switching frequency | 1.1 kHz 4) |
| Response time | 440 Β΅s 5) |
| Switching output | NPN |
| Switching output (voltage) | NPN: HIGH = VS / LOW β€ 3 V |
| Switching mode | Light/dark switching |
| Output current Imax. | 100 mA 6) |
| Connection type | Male connector M8, 4-pin |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
| Enclosure rating | IP65 |
| Weight | Approx. 100 g |
| Housing material | ZamakGlass fiber reinforced plastic |
| Ambient temperature, storage | β20 Β°C ... +70 Β°C |
| Functional principle | Ultrasonic detection principle |
| Jitter | 40 Β΅s |
