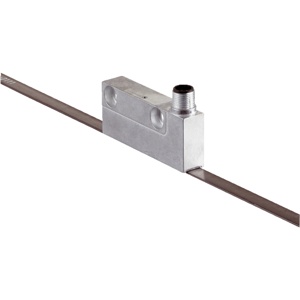

Sick TTK70-HXA0-K02: Linear Encoders
Technical Specifications of Sick Linear Encoders TTK70-HXA0-K02:
| Measuring range | 0 mm ... 3,920 mm |
| Supply voltage | 7 V DC ... 12 V DC |
| Operating current | ≤ 65 mA (without load) 1) |
| Connection type | Male connector, M12, 8-pin |
Sick Linear Encoders TTK70-HXA0-K02 Technical Specifications
| Specification | Value |
|---|---|
| Measuring range | 0 mm ... 3,920 mm |
| Resolution | 1 µm |
| Length of period | 1 mm |
| Traversing speed | 1.3 m/s, ≤ 10 m/s up to which the absolute position can be reliably produced, dynamic operation (Sin/Cos) |
| Repeatability | < 5 µm |
| Measured value backlash | < 10 µm |
| Communication interface | HIPERFACE® 1) |
| Code type | Binary |
| Available memory area | 1,792 Byte (E2PROM 2048) |
| Supply voltage | 7 V DC ... 12 V DC |
| Recommended supply voltage | 8 V DC |
| Operating current | ≤ 65 mA (without load) 1) |
| Connection type | Male connector, M12, 8-pin |
| Dimensions | See dimensional drawing |
| Scope of delivery | Magnetic tape not included with delivery |
| Weight | 0.08 kg |
| Read head material | Zinc diecast |
| Enclosure rating | IP67, with mating connector inserted (IEC 60529) |
| Operating temperature range | –30 °C ... +80 °C |
| Storage temperature range | –40 °C ... +85 °C, without package |
