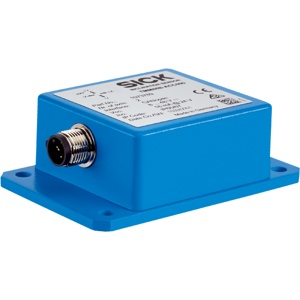

Sick TMM88B-AKC090: Inertial Sensors
Technical Specifications of Sick Inertial Sensors TMM88B-AKC090:
| Current output | 4 mA ... 20 mA |
| Connection type | Male connector, M12, 5-pin |
| Supply voltage | 17 V DC ... 35 V DC |
| Dimensions | 58 mm x 90 mm x 31 mm |
Sick Inertial Sensors TMM88B-AKC090 Technical Specifications
| Specification | Value |
|---|---|
| Number of axis | 2 |
| Measuring range | ± 90° |
| Resolution | 0.01° |
| Static measurement accuracy | ≤ ± 60°, typ. ± 0.1°, max. ± 0.2°≤ ± 80°, typ. ± 0.2°, max. ± 0.4° |
| Compensated cross-sensitivity (2-dimensional) | Typ. ± 0.1°, max. ± 0.2° |
| Temperature coefficient (zero point) | Typ. ±0.01°/K 1) |
| Limit frequency | 0.1 Hz ... 25 Hz, 8. range (with digital filter) |
| Sampling rate | 80 Hz |
| Communication interface | Analog / Current |
| Current output | 4 mA ... 20 mA |
| Load resistance | ≤ 850 Ω 1) |
| Initialization time | 265 ms |
| Connection type | Male connector, M12, 5-pin |
| Supply voltage | 17 V DC ... 35 V DC |
| Current consumption | < 35 mA (+ Iloop) @ 24 V |
| Dimensions | 58 mm x 90 mm x 31 mm |
| Weight | 200 g |
| Housing material | Aluminum |
| Operating temperature range | –40 °C ... +80 °C |
| Storage temperature range | –40 °C ... +85 °C |
| Resistance to shocks | 100 g, 6 ms (according to EN 60068-2-27) |
| Resistance to vibration | 10 g, 10 Hz ... 2,000 Hz (EN 60068-2-6) |
