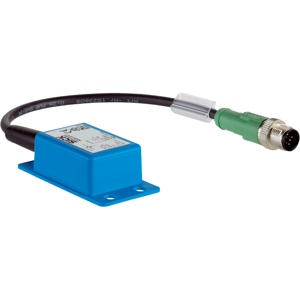

Sick TMM55E-PMH045: Inertial Sensors
Technical Specifications of Sick Inertial Sensors TMM55E-PMH045:
| Current output | 4 mA ... 20 mA |
| Connection type | Cable, 5-wire, with male connector, M12, 5-pin, 0.2 m |
| Supply voltage | 11 V DC ... 30 V DC |
| Dimensions | 65 mm x 35 mm x 20 mm |
Sick Inertial Sensors TMM55E-PMH045 Technical Specifications
| Specification | Value |
|---|
| Number of axis | 2 |
| Measuring range | Β± 45Β° |
| Resolution | 0.05Β° |
| Static measurement accuracy | Β± 0.3Β° |
| Compensated cross-sensitivity (2-dimensional) | Typ. Β± 0.9Β°, max. Β± 1.8Β° |
| Temperature coefficient (zero point) | Max. Β± 0.009Β°/K |
| Limit frequency | 18 Hz |
| Sampling rate | 1.95 kHz |
| Communication interface | Analog / Current |
| Current output | 4 mA ... 20 mA |
| Load resistance | β€ 930 Ξ© |
| Initialization time | 75 ms |
| Connection type | Cable, 5-wire, with male connector, M12, 5-pin, 0.2 m |
| Supply voltage | 11 V DC ... 30 V DC |
| Current consumption | 15 β¦ 45 mA |
| Dimensions | 65 mm x 35 mm x 20 mm |
| Weight | 55 g (with cable) |
| Housing material | Plastic (ABS) |
| Material, cable | PUR |
| Operating temperature range | β40 Β°C ... +80 Β°C |
| Storage temperature range | β40 Β°C ... +85 Β°C |
| Resistance to shocks | 100 g, 6 ms (according to EN 60068-2-27) |
| Resistance to vibration | 10 g, 10 Hz ... 2,000 Hz (EN 60068-2-6) |
