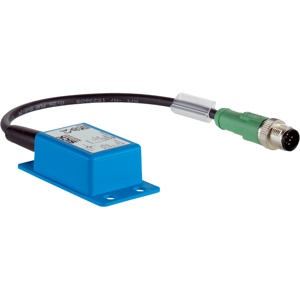

Sick TMM55E-PMH010: Inertial Sensors
Technical Specifications of Sick Inertial Sensors TMM55E-PMH010:
| Current output | 4 mA ... 20 mA |
| Connection type | Cable, 5-wire, with male connector, M12, 5-pin, 0.2 m |
| Supply voltage | 11 V DC ... 30 V DC |
| Dimensions | 65 mm x 35 mm x 20 mm |
Sick Inertial Sensors TMM55E-PMH010 Technical Specifications
| Specification | Value |
|---|---|
| Number of axis | 2 |
| Measuring range | ± 10° |
| Resolution | 0.01° |
| Static measurement accuracy | ± 0.15° |
| Compensated cross-sensitivity (2-dimensional) | Typ. ± 0.25°, max. ± 0.5° |
| Temperature coefficient (zero point) | Max. ± 0.009°/K |
| Limit frequency | 18 Hz |
| Sampling rate | 1.95 kHz |
| Communication interface | Analog / Current |
| Current output | 4 mA ... 20 mA |
| Load resistance | ≤ 930 Ω |
| Initialization time | 75 ms |
| Connection type | Cable, 5-wire, with male connector, M12, 5-pin, 0.2 m |
| Supply voltage | 11 V DC ... 30 V DC |
| Current consumption | 15 … 45 mA |
| Dimensions | 65 mm x 35 mm x 20 mm |
| Weight | 55 g (with cable) |
| Housing material | Plastic (ABS) |
| Material, cable | PUR |
| Operating temperature range | –40 °C ... +80 °C |
| Storage temperature range | –40 °C ... +85 °C |
| Resistance to shocks | 100 g, 6 ms (according to EN 60068-2-27) |
| Resistance to vibration | 10 g, 10 Hz ... 2,000 Hz (EN 60068-2-6) |
