Sick TIM510-9950000S01 LiDAR Sensor

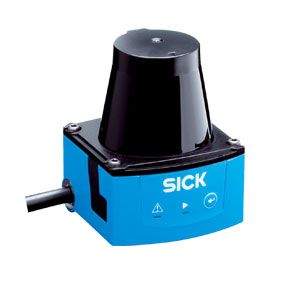

The Sick TIM510-9950000S01 LiDAR Sensor provides 270Β° scanning, 15 Hz operation, and 4 m indoor detection accuracy for automation. This Sick Indoor 4m Range LiDAR Sensor uses 850 nm infrared light, supports IP65 enclosure, and connects via a 12-pin M12 cable interface. Within the Sick LiDAR Sensor range, the TIM510-9950000S01 Sick Indoor 4m Range LiDAR Sensor enables compact indoor measurement tasks.
| Brand | Sick |
| Product Type | Lidar Sensor |
| Model Number | TIM510-9950000S01 |
Sick TIM510-9950000S01 LiDAR Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Application | Indoor |
| Light source | Infrared (850 nm) |
| Laser class | 1 (IEC 60825-1:2014, EN 60825-1:2014) |
| Aperture angle | Horizontal, 270Β° |
| Scanning frequency | 15 Hz |
| Angular resolution | 1Β° |
| Heating | - |
| Working range | 0.05 m ... 4 m |
| Scanning range | At 10% remission factor, 2 m |
| Connection type | 1 x cable with 12-pin M12 male connector (0,3 m), 1 x Micro USB female connector, type B |
| Supply voltage | 9 V DC ... 28 V DC |
| Power consumption | Typ. 4 W |
| Housing | - |
| Housing color | Light blue (RAL 5012) |
| Enclosure rating | IP65 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| Protection class | III (IEC 61140:2016-1) |
| Weight | 150 g, without connecting cables |
| Dimensions (L x W x H) | 60 mm x 60 mm x 79 mm |
| MTBF | > 100 years |
| MTTFD | > 100 years |
| Detectable object shape | Almost any |
| Systematic error | Β± 40 mm |
| Statistical error | < 30 mm |
| Ethernet | - |
| Serial | β , RS-232, Function, Data interface (read result output). Data transmission rate, 460.8 kBaud |
| Digital outputs | 1 (PNP, "SYNC"/"device ready") |
| Optical indicators | 2 LEDs (ON, switching status) |
| Ambient operating temperature | β10 Β°C ... +50 Β°C |
| Storage temperature | β30 Β°C ... +70 Β°C |
The TIM510-9950000S01 Sick Indoor 4m Range LiDAR Sensor is designed for indoor industrial automation applications. It delivers 270Β° horizontal scanning, a 15 Hz scanning frequency, and a 0.05 m to 4 m working range for short-range detection. The TIM510-9950000S01 belongs to the TIM Series and supports consistent object sensing in controlled environments.
In automation systems, the TIM510-9950000S01 LiDAR Sensor is commonly applied in conveyors, packaging machines, compact assembly stations, and material handling lines. Its RS-232 serial interface allows reliable data output to controllers, while defined digital outputs provide clear device-ready and synchronization signals for stable system integration.
The Sick TIM510-9950000S01 LiDAR Sensor combines predictable optical performance with IP65 environmental protection for long-term indoor operation. A wide 9β28 V DC supply range simplifies electrical integration. Supported by Sick LiDAR Sensor engineering standards, the TIM510-9950000S01 remains suitable for continuous industrial use.
