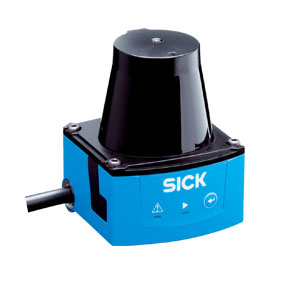

Sick TIM320-1031000 LiDAR Sensor
The Sick TIM320-1031000 LiDAR Sensor offers a 0.05 m ... 4 m working range, 9 V DC ... 28 V DC power supply, and 1 x 15-pin D-sub HD male connector (0.9 m) connection. Manufactured by Sick under the LiDAR Sensor category, this model belongs to the LMS Series.
| Brand | Sick |
| Product Type | Lidar Sensor |
| Model Number | TIM320-1031000 |
Sick TIM320-1031000 LiDAR Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Application | Indoor |
| Light source | Infrared (850 nm) |
| Laser class | 1 (IEC 60825-1:2014, EN 60825-1:2014) |
| Aperture angle | Horizontal, 270Β° |
| Scanning frequency | 15 Hz |
| Angular resolution | 1Β° |
| Heating | - |
| Working range | 0.05 m ... 4 m |
| Scanning range | At 10% remission factor, 2 m |
| Connection type | 1 x 15-pin D-sub HD male connector (0.9 m) |
| Supply voltage | 9 V DC ... 28 V DC |
| Power consumption | Typ. 4 W, 16 W with 4 max. loaded digital outputs |
| Housing | - |
| Housing color | Light blue (RAL 5012) |
| Enclosure rating | IP65 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| Protection class | III (IEC 61140:2016-1) |
| Weight | 150 g, without connecting cables |
| Dimensions (L x W x H) | 60 mm x 60 mm x 79 mm |
| MTBF | > 100 years |
| MTTFD | > 100 years |
| Detectable object shape | Almost any |
| Systematic error | Β± 40 mm |
| Statistical error | 30 mm |
| Ethernet | - |
| Serial | - |
| Digital outputs | 3 (NPN, additional 1 x βDevice Readyβ) |
| Optical indicators | 2 LEDs (ON, switching status) |
| Ambient operating temperature | β10 Β°C ... +50 Β°C |
| Storage temperature | β30 Β°C ... +70 Β°C |
The Sick TIM320-1031000 LiDAR Sensor is a compact and precise 4 m Range LiDAR Sensor developed by Sick, a global leader in industrial sensing and automation technologies. Designed for reliable indoor detection and area monitoring, this LiDAR Sensor provides accurate distance measurement for automation systems, safety fields, and robotic navigation applications.
The TIM320-1031000 operates using an infrared light source at 850 nm and covers a wide 270Β° horizontal aperture angle, ensuring broad and consistent scanning performance. It features a 15 Hz scanning frequency and a 1Β° angular resolution for precise object mapping and measurement. With a working range of 0.05 m to 4 m and detection up to 2 m at 10% remission, it maintains stable accuracy under varying surface conditions. The unit runs efficiently on a 9β28 V DC power supply and consumes a typical 4 W during operation, scaling to 16 W with fully loaded outputs. Its robust IP65-rated housing in light blue (RAL 5012) offers solid protection against dust and moisture. Connectivity is provided via a 15-pin D-sub HD male connector for easy system integration. The Sick TIM320-1031000 also includes three NPN digital outputs and an additional βDevice Readyβ signal, enabling efficient automation control. With a weight of 150 g and compact dimensions of 60 Γ 60 Γ 79 mm, itβs ideal for space-constrained applications while offering long operational reliability with an MTBF and MTTFD exceeding 100 years.
The Sick TIM320-1031000 LiDAR Sensor is widely used in indoor automation, robotics, and industrial material handling systems that require consistent detection and mapping capabilities. In AGVs (Automated Guided Vehicles), it helps with precise navigation and obstacle detection. In safety and warehouse automation, it supports field monitoring and perimeter protection with high accuracy. The compact size and plug-and-play connectivity make it easy to integrate into existing automation setups without additional calibration. Engineers prefer the TIM320-1031000 for its consistent performance in dynamic lighting conditions, durability in harsh indoor environments, and efficient power consumption. Backed by Sickβs commitment to innovation, this sensor delivers accuracy, longevity, and performance reliability, making it a preferred choice for modern industrial automation systems.
For professionals seeking more details on the Sick TIM320-1031000, the TIM320-1031000 datasheet and TIM320-1031000 manual provide complete configuration and technical information. Before purchasing, checking the latest TIM320-1031000 price from authorized Sick distributors helps ensure value-based planning. Known for precision, compact design, and energy efficiency, the Sick 4 m Range LiDAR Sensor continues to be one of the most trusted products in the automation industry. With advanced scanning technology and proven engineering, the TIM320-1031000 upholds Sickβs legacy of quality and reliability in industrial sensing solutions.
