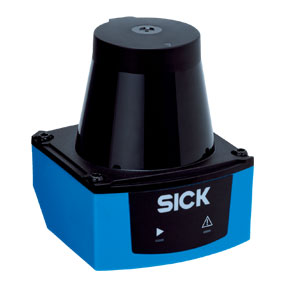

Sick TiM150-3010300 LiDAR Sensor
The Sick TiM150-3010300 LiDAR Sensor provides 200Β° scanning, 14.5 Hz frequency, and 10 m indoor detection range for automation. This Sick LiDAR Laser Scanner operates using 850 nm infrared light, supports IP65 enclosure, low power consumption, and compact M12 connector installation. Within the Sick LiDAR Sensor portfolio, the TiM150-3010300 Sick LiDAR Laser Scanner enables reliable short-range object detection in confined industrial spaces.
| Brand | Sick |
| Product Type | Lidar Sensor |
| Model Number | TiM150-3010300 |
Sick TiM150-3010300 LiDAR Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Application | Indoor |
| Light source | Infrared (850 nm) |
| Laser class | 1 (IEC 60825-1:2014, EN 60825-1:2014) |
| Aperture angle | Horizontal, 200Β° |
| Scanning frequency | 14.5 Hz |
| Angular resolution | 1Β° |
| Heating | - |
| Working range | 0.05 m ... 10 m |
| Scanning range | At 10% remission factor, 2.8 m ... 3 m, depending on the angle |
| Connection type | 1 x 5-pin M12 male device connector (rotatable) |
| Supply voltage | 10 V DC ... 28 V DC |
| Power consumption | Typ. 2.7 W |
| Housing | - |
| Housing color | Light blue (RAL 5012) |
| Enclosure rating | IP65 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| Protection class | III (IEC 61140:2016-1) |
| Weight | 122 g, without connecting cables |
| Dimensions (L x W x H) | 60 mm x 60 mm x 75.8 mm |
| MTBF | 82 years |
| MTTFD | > 100 years |
| Detectable object shape | Almost any |
| Systematic error | Β± 40 mm |
| Statistical error | 30 mm |
| Ethernet | - |
| Serial | - |
| Digital outputs | 2 (Push-pull) |
| Optical indicators | 2 LEDs (ON, switching status) |
| Ambient operating temperature | β10 Β°C ... +50 Β°C |
| Storage temperature | β30 Β°C ... +70 Β°C |
The TiM150-3010300 Sick LiDAR Laser Scanner is a compact LiDAR Sensor designed for indoor industrial automation applications. It delivers 200Β° horizontal aperture, 14.5 Hz scanning frequency, and a 0.05 m to 10 m working range for precise short-distance monitoring. The TiM150-3010300 belongs to the TIM Series and is used where space-efficient sensing is required.
In industrial environments, the TiM150-3010300 LiDAR Sensor is applied in conveyor systems, packaging equipment, assembly cells, and compact automation stations. Its small housing and lightweight design allow flexible mounting in restricted spaces. Stable push-pull digital outputs provide consistent object presence detection for basic automation and control tasks.
The Sick TiM150-3010300 LiDAR Sensor is engineered for dependable indoor operation with IP65 protection and defined temperature limits. Low power consumption supports continuous use in industrial installations. Backed by Sick LiDAR Laser Scanner technology, the TiM150-3010300 ensures stable performance for short-range detection requirements.
