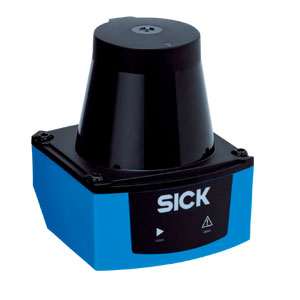

TIM100-3010200: 1077524 - Sick Compact 2D LiDAR Sensor
Technical Specifications of Sick Compact 2D LiDAR Sensor TIM100-3010200 1077524:
| Light Source | Infrared (850 nm) |
| Connection Type | 1 x 5-pin M12 male device connector (rotatable) |
| Dimensions (L x W x H) | 60 mm x 60 mm x 75.8 mm |
| Digital outputs | 2 (Push-pull) |
Sick Compact 2D LiDAR Sensor TIM100-3010200, 1077524 Technical Specifications:
| Specification | Value |
|---|---|
| Application | Indoor |
| Light source | Infrared (850 nm) |
| Laser class | 1 (IEC 60825-1:2014, EN 60825-1:2014) |
| Aperture angle | Horizontal, 200Β° |
| Scanning frequency | 14.5 Hz |
| Angular resolution | 1Β° |
| Heating | - |
| Working range | 0.05 m ... 3 m |
| Scanning range | At 10% remission factor, 1.2 m ... 1.5 m, depending on the angle |
| Connection type | 1 x 5-pin M12 male device connector (rotatable) |
| Supply voltage | 9 V DC ... 28 V DC |
| Power consumption | Typ. 2.2 W |
| Housing | - |
| Housing color | Light blue (RAL 5012) |
| Enclosure rating | IP65 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| Protection class | III (IEC 61140:2016-1) |
| Weight | 90 g, without connecting cables |
| Dimensions (L x W x H) | 60 mm x 60 mm x 75.8 mm |
| MTBF | 50 years |
| MTTFD | > 100 years |
| Detectable object shape | Almost any |
| Systematic error | Β± 50 mm |
| Statistical error | 20 mm |
| Ethernet | - |
| Serial | - |
| Digital outputs | 2 (Push-pull) |
| Optical indicators | 2 LEDs (ON, switching status) |
| Ambient operating temperature | β10 Β°C ... +50 Β°C |
| Storage temperature | β30 Β°C ... +70 Β°C |
Please speak to our Technical Engineer for Sick Compact 2D LiDAR Sensor TIM100-3010200 part no: 1077524 at attractive prices. Technical Specs Summary of TIM100-3010200, 1077524 includes Indoor applications, using an Infrared (850 nm) light source and classified as Laser Class 1 (IEC 60825-1:2014, EN 60825-1:2014). It offers a Horizontal, 200Β° aperture angle with a scanning frequency of 14.5 Hz and operates within a working range of 0.05 m ... 3 m, with a scanning range At 10% remission factor, 1.2 m ... 1.5 m, depending on the angle. It connects 1 x 5-pin M12 male device connector (rotatable) and requires a 9 V DC ... 28 V DC supply voltage, consuming Typ. 2.2 W for heating. colored Light blue (RAL 5012), with an IP65 (IEC 60529:1989+AMD1:1999+AMD2:2013) enclosure rating and protection class III (IEC 61140:2016-1). The dimensions of 60 mm x 60 mm x 75.8 mm. The MTBF is 50 years, and MTTFD is > 100 years. The sensor has a systematic error of Β± 50 mm and a statistical error of 20 mm, 2 (Push-pull) output. It operates between β10 Β°C ... +50 Β°C and can be stored between β30 Β°C ... +70 Β°C. Match Your Needs with a Quote for your requirement of Sick Compact 2D LiDAR Sensor. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
