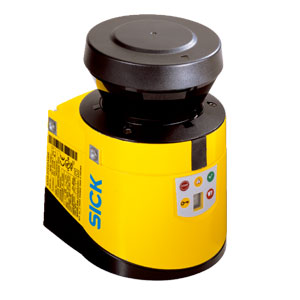

Sick S30B-3011DA Safety Scanner
The Sick S30B-3011DA Safety Laser Scanner, part of the S300 Professional series, is a compact and intelligent area protection device built for indoor industrial automation. It delivers reliable safety zone monitoring for fixed and mobile applications, with flexible configuration options and advanced diagnostics.
| Brand | Sick |
| Product Type | Laser Safety Scanner |
| Product | S30B-3011DA |
Sick S30B-3011DA Safety Scanner β Technical Specifications
| Specification | Value |
|---|---|
| Sub product family | S300 Professional |
| Application | Indoor |
| Protective field range | 3 m |
| Warning field range | 8 m (at 15 % reflectivity) |
| Number of simultaneously monitored fields | - |
| Number of fields | 24 |
| Number of monitoring cases | 32 |
| Scanning angle | 270Β° |
| Angular resolution | 0.5Β° |
| Resolution (can be configured) | 30 mm, 40 mm, 50 mm, 70 mm, 150 mm |
| Response time | 80 ms |
| Protective field supplement | 100 mm |
| Type | Type 3 (IEC 61496) |
| Safety integrity level | SIL 2 (IEC 61508) |
| Category | Category 3 (EN ISO 13849) |
| Performance level | PL d (EN ISO 13849) |
| TM (mission time) | 20 years (EN ISO 13849) |
| Safe state in the event of a fault | At least one OSSD is in the OFF state. |
| Connection type | System plug with or without connecting cable |
| Universal I/Osβ | 5 |
| Outputs/OSSD pairs | 1 |
| Configuration method | PC with Safety Designer (Configuration and Diagnostic Software) |
| Configuration and diagnostics interface | RS-232 |
| Display elements | - |
| Protection class | III (EN 50178, EN 60950) |
| Supply voltage Vs | 24 V DC (16.8 V DC ... 30 V DC) |
| Power consumption typical | β€ 0.33 A, β€ 1.7 A |
| Dimensions (W x H x D) | 102 mm x 152 mm x 106 mm |
| Weight | 1.2 kg |
| Housing material | Aluminum die cast |
| Housing color | RAL 1021 (yellow) |
| Optics cover material | Polycarbonate |
| Optics cover surface finish | Outside with scratch-resistant coating |
| Enclosure rating | IP65 (EN 60529) |
| Ambient operating temperature | β10 Β°C ... +50 Β°C |
| Type of light | Pulsed laser diode |
| Wave length | 905 nm |
The Sick S30B-3011DA is a reliable Laser Safety Scanner from Sick, part of the advanced S300 Professional Safety Laser Scanner series. Built for industrial environments, it helps engineers, system integrators, and safety managers ensure precise area protection and safe machine operation in automation settings.
The S30B-3011DA delivers a 3 m protective field range and an 8 m warning field range (at 15% reflectivity), offering dependable short-range and mid-range safety coverage. Its wide 270Β° scanning angle and 24 configurable fields with up to 32 monitoring cases give engineers flexibility to adapt safety zones to complex layouts. With configurable resolutions as fine as 30 mm and an 80 ms response time, it quickly detects personnel or obstacles in hazardous zones. Built with compliance to SIL 2 (IEC 61508), Category 3 (EN ISO 13849), and PL d performance level, this scanner meets international safety standards for industrial environments. Rugged features like its aluminum die-cast housing, IP65 protection, and scratch-resistant polycarbonate optics ensure durability, while the 24 V DC supply with low power consumption makes it energy efficient for long-term use. Combined with Sickβs Safety Designer software and RS-232 diagnostics, it provides precise configuration, monitoring, and reliability for critical automation tasks.
In real-world applications, the Sick S30B-3011DA Laser Safety Scanner is widely used in robotics, conveyors, AGVs, and access protection systems. For example, in robotic cells, it monitors operator entry points and instantly stops dangerous motion to prevent accidents. On automated guided vehicles, it creates dynamic safety fields that adapt as the vehicle moves, reducing collision risks. Maintenance engineers benefit from its simple setup and high responsiveness, while system designers value its flexibility to protect large equipment with multiple monitoring cases. Students and junior engineers studying safety automation can also use the S30B-3011DA as a reference model to understand how advanced safety standards are applied in industrial automation. This makes it not only a trusted device for plants but also a benchmark in workplace safety training.
For complete technical references, engineers can consult the official Sick S30B-3011DA datasheet and installation manual, which provide wiring, setup, and configuration details. Procurement teams often look up S30B-3011DA price to compare with authorized Sick distributors. With a 20-year mission time, globally recognized safety certifications, and Sickβs strong support network, the S300 Professional Safety Laser Scanner continues to be a dependable choice. Whether you need documentation, pricing information, or practical deployment guidance, the S30B-3011DA remains a trusted and proven safety solution for modern industries.
