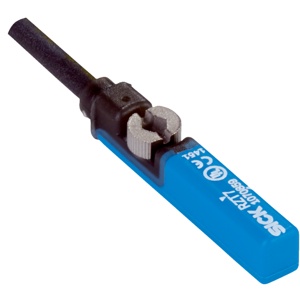

RZT7-03ZRS-KWD: Sick RZT7 Reed Switching Output Sensors
Technical specifications of Sick RZT7 Reed Switching Output Sensors RZT7-03ZRS-KWD 9iud0p8p863%9:
| Switching Output | Reed |
| Housing Length | 29.5 mm |
| Connection Type | Cable, 3-wire, 10 m |
| Electrical Wiring | AC/DC 3-wire |
Sick RZT7 Reed Switching Output Sensors RZT7-03ZRS-KWD Technical Specifications:
| Specification | Value |
|---|---|
| Cylinder Type | T-slot |
| Cylinder Types with Adapter | Profile cylinderTie rod cylinderRound body cylinderDovetail groove cylinderSMC rail CDQ2SMC rail ECDQ2 |
| Housing Length | 29.5 mm |
| Switching Output | Reed |
| Switching Frequency | 400 Hz |
| Output Function | NO |
| Electrical Wiring | AC/DC 3-wire |
| Enclosure Rating | IP65 IP67 |
| Supply Voltage | 5 V AC/DC ... 30 V AC/DC |
| Voltage Drop | ≤ 0.1 V |
| Continuous Current Ia | ≤ 500 mA ≤ 300 mA |
| Switching Capacity | ≤ 6 W |
| Protection Class | III |
| Response Sensitivity, Typ. | 3 mT |
| Overrun Distance, Typ. | 10 mm |
| Reproducibility | ≤ 0.1 mT |
| Reverse Polarity Protection | - |
| Status Indicator LED | Yes |
| Ambient Operating Temperature | –30 °C ... +70 °C |
| Shock and Vibration Resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| EMC | According to EN 60947-5-2 |
| Connection Type | Cable, 3-wire, 10 m |
| Conductor Cross Section | 0.12 mm² |
| Cable Diameter | Ø 2.9 mm |
| Bending Radius | With fixed installation > 10 x cable diameter |
| Cable Outlet | Axial |
| Housing | Plastic, Grilamid LVX-65H SST |
| Cable | PVC |
Mail Us for your needs in Sick RZT7 Reed Switching Output Sensors RZT7-03ZRS-KWD with budget-friendly prices. The Main Technical Parameters of RZT7-03ZRS-KWD include housing length of 29.5 mm, ideal for precise detection in industrial settings. These sensors feature a Reed switching output with a frequency of 400 Hz, ensuring fast response times. The output function is NO, utilizing AC/DC 3-wire electrical wiring for versatile applications. Rated at IP65 IP67, these sensors provide excellent protection against dust and water, making them suitable for challenging environments. The supply voltage ranges from 5 V AC/DC ... 30 V AC/DC, with a voltage drop of ≤ 0.1 V , ensuring efficient power usage. The switching capacity is rated at ≤ 6 W, providing reliable performance across various industrial tasks. The connection type is a durable Cable, 3-wire, 10 m, made from high-quality PVC. The housing is constructed from robust Plastic, Grilamid LVX-65H SST. Customize Your Experience with a Quote for your requirement of Sick RZT7 Reed Switching Output Sensors. Experience the difference with our competitive pricing and superior support over other Suppliers.
