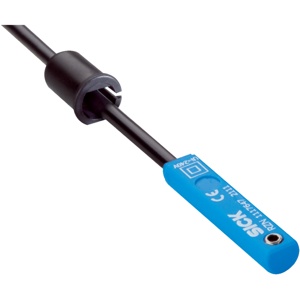

RZN-03ZWS-KWB: Sick RZN Sensors for Magnetic Piston Position Detection

Technical specifications of Sick RZN Sensors for Magnetic Piston Position Detection RZN-03ZWS-KWB kw$1665pp0w3:

Housing Length	29.5 mm
Switching Output	Reed
Output Function	NO
Connection Type	Cable, 2-wire, drag chain use, 5 m

Sick RZN Sensors for Magnetic Piston Position Detection RZN-03ZWS-KWB Technical Specifications:

Specification	Value
Cylinder Type	IMI Norgren slot
Cylinder Types with Adapter	Round body cylinder
Housing Length	29.5 mm
Switching Output	Reed
Switching Frequency	400 Hz
Output Function	NO
Electrical Wiring	AC/DC 2-wire
Enclosure Rating	IP67
Supply Voltage	5 V AC/DC ... 240 V AC/DC
Voltage Drop	≤ 3.5 V
Continuous Current Ia	≤ 100 mA
Switching Capacity	≤ 10 W
Protection Class	II
Response Sensitivity, Typ.	3 mT
Overrun Distance, Typ.	10 mm
Reproducibility	≤ 0.1 mT
Status Indicator LED	Yes
Ambient Operating Temperature	–40 °C ... +80 °C
Shock and Vibration Resistance	50 g, 11 ms / 10 ... 55 Hz, 1 mm
EMC	According to EN 60947-5-2
Connection Type	Cable, 2-wire, drag chain use, 5 m
Cable Diameter	Ø 3 mm
Bending Radius	With fixed installation > 10 x cable diameter
Cable Outlet	Axial
Housing	Plastic
Cable	PVC
Unit Weight	-
Net Unit Weight	-

Mail Us for your needs in Sick RZN Sensors for Magnetic Piston Position Detection RZN-03ZWS-KWB with budget-friendly prices. The Main Technical Parameters of RZN-03ZWS-KWB include Round body cylinder with an adapter, providing excellent versatility for industrial automation. These sensors feature a housing length of 29.5 mm and a Reed switching output with a switching frequency of 400 Hz, ensuring reliable performance. The output function is (normally open) NO, and the electrical wiring supports AC/DC 2-wire connections for broad compatibility. Rated with an IP67 enclosure, these sensors are protected against dust and water for durable operation in harsh environments. The supply voltage ranges from 5 V AC/DC ... 240 V AC/DC , with a voltage drop of ≤ 3.5 V and a switching capacity of ≤ 10 W. The connection type includes a Cable, 2-wire, drag chain use, 5 m. The housing is made of sturdy Plastic, and the cable is constructed from high-quality PVC. Customize Your Experience with a Quote for your requirement of Sick RZN Sensors for Magnetic Piston Position Detection. Experience the difference with our competitive pricing and superior support over other Suppliers.
