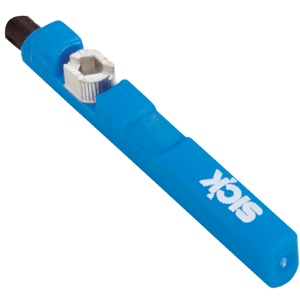

RZC1-04ZUS-KU0: Rugged Reed Contact Sensors for Industrial Cylinders
Technical Specifications of Rugged Reed Contact Sensors for Industrial Cylinders RZC1-04ZUS-KU0:
| Housing Length | 26.3 mm |
| Output Function | NO |
| Electrical Wiring | AC/DC 2-wire |
| Connection Type | Cable, 2-wire, 2 m |
RZC1-04ZUS-KU0: Rugged Reed Contact Sensors for Industrial Cylinders
| Specification | Value |
|---|---|
| Cylinder types | C-slot |
| Cylinder types with adapter | SMC rail CDQ2SMC rail ECDQ2 |
| Housing length | 26.3 mm |
| Switching output | Reed |
| Switching frequency | 500 Hz |
| Output function | NO |
| Electrical wiring | AC/DC 2-wire |
| Enclosure rating | IP67 |
| Supply voltage | 5 V AC/DC ... 120 V AC/DC |
| Power consumption | 5 mA, without load |
| Voltage drop | < 3.2 V |
| Continuous current Ia | ≤ 50 mA |
| Switching capacity | ≤ 6 W |
| Protection class | II |
| Overrun distance, typ. | 7 mm |
| Reproducibility | ≤ 0.1 mT |
| Status indicator LED | Yes |
| Ambient operating temperature | –30 °C ... +80 °C |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| EMC | According to EN 60947-5-2 |
| Connection type | Cable, 2-wire, 2 m |
| Conductor cross section | 0.09 mm² |
| Cable diameter | Ø 2.2 mm |
| Cable outlet | Axial |
| Housing | Plastic, PA, strengthened |
| Cable | PUR |
Ask for the Pricing of Rugged Reed Contact Sensors for Industrial Cylinders RZC1-04ZUS-KU0 at unbeatable prices. Detailed Specifications of RZC1-04ZUS-KU0 features housing length of 26.3 mm and a Reed switching output. With a switching frequency of 500 Hz and NO output function, it operates on an AC/DC 2-wire electrical wiring system, making it versatile for various applications. The sensor has an IP67 enclosure rating, ensuring protection in challenging environments. The supply voltage range is 5 V AC/DC ... 120 V AC/DC, with a power consumption of 5 mA, without load. The voltage drop is less than < 3.2 V, and the continuous current (Ia) is ≤ 50 mA. It also offers a switching capacity of ≤ 6 W, ensuring reliable performance. The connection type is a Cable, 2-wire, 2 m diameter, providing flexibility. The housing is made of Plastic, PA, strengthened, and the cable is PUR, ensuring durability and long-term use. Now's the Time to Secure a Quote for your requirement of Rugged Reed Contact Sensors for Industrial Cylinders. We're committed to offering more favorable pricing and more responsive support than other Traders.
