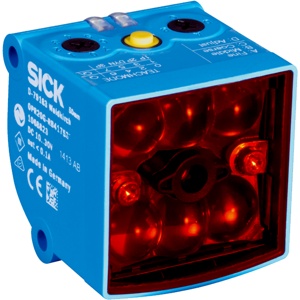

Sick OPR20G-RB317537 Glare Sensors
The Sick OPR20G-RB317537 Glare Sensor offers a Rectangular design, ≤ 50 mm sensing distance, LED, Red light source, Push-pull: PNP/NPN output, and Male connector M12, 5-pin connection type. Manufactured by Sick under the Sick Glare Sensor category, this model belongs to the OPR Series.
| Brand | Sick |
| Product Type | Glare Sensor |
| Model Number | OPR20G-RB317537 |
Sick OPR20G-RB317537 Glare Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Sensor principle | Delta-S-Technology® |
| Dimensions (W x H x D) | 42.5 mm x 44 mm x 43.4 mm |
| Sensing distance | ≤ 50 mm |
| Sensing distance tolerance | ± 5 mm |
| Housing design | Rectangular |
| Tilt angle tolerance | ± 5° |
| Minimum detectable object (MDO) | 12 x 14 mm |
| Light source | LED, Red |
| Wave length | 640 nm |
| Light spot size | 10 mm x 12 mm |
| Object speed max. | 2 m/s 2) |
| Sensitivity | Fine, middle, coarse |
| Teach-in mode | Static 1-point teach-inStatic 2-point teach-inDynamic 2-point teach-inStatic 3-point teach-in |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | ≤ 5 Vpp 2) |
| Current consumption | < 150 mA 3) |
| Switching frequency | 500 Hz 4) |
| Response time | 1 ms 5) |
| Jitter | 500 µs |
| Number of switching outputs | 2 (Q1, Q2) |
| Switching output | Push-pull: PNP/NPN |
| Switching output (voltage) | Push-pull: PNP/NPN (High: VS - 3 V, Low: < 3 V) |
| Output current Imax. | < 100 mA 6) |
| Initialization time | < 2.5 s |
| Connection type | Male connector M12, 5-pin |
| Circuit protection | A 7)C 8)D 9) |
| Protection class | III |
| Enclosure rating | IP67 |
| Weight | 130 g |
| Housing material | Plastic, ABS |
| Ambient operating temperature | –10 °C ... +55 °C |
| Ambient temperature, storage | –25 °C ... +75 °C |
| Ambient light immunity | > 50 klx |
