Procurement teams shortlist OLS20-UB1118340 with Sick Diffuse Sensor, Sick Incremental Sensors and Any Brand Contrast Sensor Suppliers In Hosur, aligning budget approvals, warranty terms, and multisite availability for smoother rollout across plants.

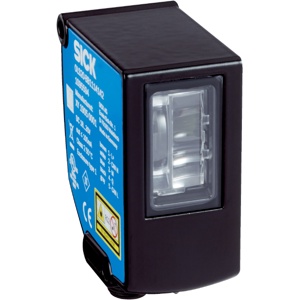

Sick OLS20-UB1118340 Contrast Sensor
The Sick OLS20-UB1118340 Contrast Sensor offers Rectangular, design β€ 100 mm sensing distance, 18 V DC ... 30 V DC supply voltage, Push-pull: PNP/NPN Output Male connector M12, 5-pin connection. Manufactured by Sick under the Sick Contrast Sensor category, this model belongs to the KT Series.
| Brand | Sick |
| Product Type | Contrast Sensor |
| Model Number | OLS20-UB1118340 |
Sick OLS20-UB1118340 Contrast Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 31 mm x 62 mm x 52.5 mm |
| Sensing distance | β€ 100 mm |
| Sensing distance tolerance | Β± 10 mm |
| Housing design | Rectangular |
| Light source | LED, UV |
| Wave length | 385 nm |
| Light spot size | 180 mm x 9 mm |
| Supply voltage | 18 V DC ... 30 V DC |
| Ripple | β€ 5 Vpp |
| Switching output | Push-pull: PNP/NPN |
| Switching output (voltage) | Push-pull: PNP/NPN HIGH = UV - 3 V/LOW β€ 3 V |
| Output current Imax. | < 100 mA |
| Connection type | Male connector M12, 5-pin |
| Protection class | III |
| Enclosure rating | IP67 |
| Weight | 250 g |
| Housing material | Zinc diecast |
| Ambient operating temperature | β10 Β°C ... +55 Β°C |
| Ambient temperature, storage | β25 Β°C ... +75 Β°C |
