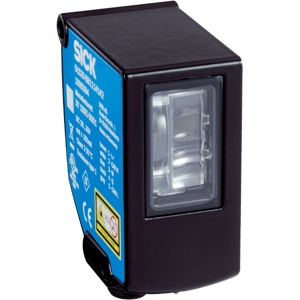

Sick OLS20-UB1114140 Contrast Sensor
The Sick OLS20-UB1114140 Contrast Sensor offers Rectangular, design β€ 100 mm sensing distance, 18 V DC ... 30 V DC supply voltage, Push-pull: PNP/NPN Output Male connector M12, 5-pin connection. Manufactured by Sick under the Sick Contrast Sensor category, this model belongs to the KT Series.
| Brand | Sick |
| Product Type | Contrast Sensor |
| Model Number | OLS20-UB1114140 |
Sick OLS20-UB1114140 Contrast Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 31 mm x 62 mm x 52.5 mm |
| Sensing distance | β€ 100 mm |
| Sensing distance tolerance | Β± 10 mm |
| Housing design | Rectangular |
| Light source | LED, UV |
| Wave length | 385 nm |
| Light spot size | 180 mm x 9 mm |
| Supply voltage | 18 V DC ... 30 V DC |
| Ripple | β€ 5 Vpp |
| Switching output | Push-pull: PNP/NPN |
| Switching output (voltage) | Push-pull: PNP/NPN HIGH = UV - 3 V/LOW β€ 3 V |
| Output current Imax. | < 100 mA |
| Connection type | Male connector M12, 5-pin |
| Protection class | III |
| Enclosure rating | IP67 |
| Weight | 250 g |
| Housing material | Zinc diecast |
| Ambient operating temperature | β10 Β°C ... +55 Β°C |
| Ambient temperature, storage | β25 Β°C ... +75 Β°C |
