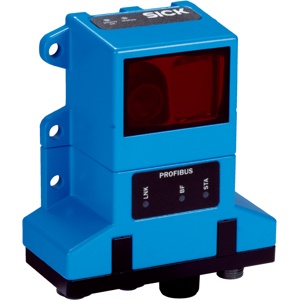

During technical comparisons, OLM100-1206 appears alongside Sick Diffuse Sensor, Sick Incremental Sensors and Sick Olm200 1002 so engineers assess signal types, ingress protection, and ambient tolerances accurately.

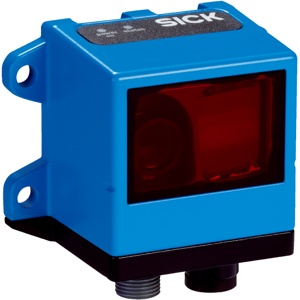

Sick OLM100-1206 Linear Measurement Sensor
The Sick OLM100-1206 Linear Measurement Sensor offers a 0 m ... 10,000 m measuring range, LED, red light source, 1 ms output time, and 19 barcode width. Manufactured by Sick under the Sick Linear Measurement Sensor category, this model belongs to the OLM Series.
| Brand | Sick |
| Product Type | Linear Measurement Sensors |
| Model Number | OLM100-1206 |
Sick OLM100-1206 Linear Measurement Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Supply voltage Vs | DC 10 V ... 30 V |
| Ripple | β€ 5 Vpp |
| Power consumption | < 3 W |
| Initialization time | < 3 s |
| Enclosure rating | IP65 |
| Protection class | III |
| Measuring range | 0 m ... 10,000 m |
| Resolution | 0.1 mm, 1 mm |
| Repeatability | 0.15 mm 2) |
| Output time | 1 ms |
| Light source | LED, red |
| Max. movement speed | 7 m/s |
| Reading distance | 100 mm, Β± 20 mm |
| Barcode width | 30 mm |
| Ambient temperature, operation | β30 Β°C ... +60 Β°C |
| Ambient temperature, storage | β40 Β°C ... +75 Β°C 2) |
| Typ. Ambient light immunity | β€ 5,000 lx 3) |
