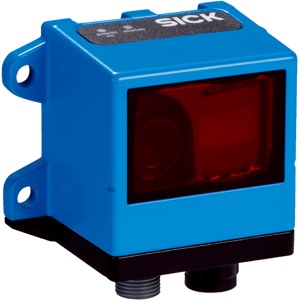

Sick OLM100-1201S03 Linear Measurement Sensor

Name: Sick OLM100-1201S03
Brand: IndMALL
SKU: fe311fb3af94
Rating: 4.5 (4 reviews)

The Sick OLM100-1201S03 Linear Measurement Sensor offers a 0 m ... 10,000 m measuring range, LED, red light source, output time, and 22 barcode width. Manufactured by Sick under the Sick Linear Measurement Sensor category, this model belongs to the OLM Series.

Datasheet

Brand	Sick
Product Type	Linear Measurement Sensors
Model Number	OLM100-1201S03

Sick OLM100-1201S03 Linear Measurement Sensor – Technical Specifications

Specification	Value
Supply voltage Vs	DC 10 V ... 30 V
Ripple	≤ 5 Vpp 2)
Power consumption	< 5.5 W
Initialization time	< 3 s
Enclosure rating	IP65
Protection class	III
Measuring range	0 m ... 10,000 m
Resolution	0.1 mm, 1 mm
Repeatability	0.15 mm 2)
Light source	LED, red
Max. movement speed	7 m/s
Reading distance	100 mm, ± 20 mm
Barcode width	30 mm
Ambient temperature, operation	–30 °C ... +60 °C
Ambient temperature, storage	–40 °C ... +75 °C 2)
Typ. Ambient light immunity	≤ 5,000 lx 3)
