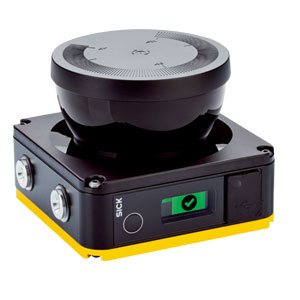

Sick NANS3-AAAZ30AN1 Safety Scanner
The Sick NanoScan3 Core Safety Laser Scanner NANS3-AAAZ30AN1 is a compact, high-performance laser safety scanner designed for precise indoor safety monitoring. Built by Sick, a global leader in industrial safety solutions, it ensures reliable protection for automated machinery and mobile platforms.
| Brand | Sick |
| Product Type | Laser Safety Scanner |
| Product | NANS3-AAAZ30AN1 |
Sick NANS3-AAAZ30AN1 Safety Scanner β Technical Specifications
| Specification | Value |
|---|---|
| Sub product family | nanoScan3 Core I/O |
| Application | Indoor |
| Protective field range | 3 m |
| Warning field range | 10 m |
| Number of simultaneously monitored fields | β€ 4 |
| Number of fields | 8 |
| Number of monitoring cases | 2 |
| Scanning angle | 275Β° |
| Angular resolution | 0.17Β° |
| Resolution (can be configured) | 20 mm, 30 mm, 40 mm, 50 mm, 60 mm, 70 mm, 150 mm, 200 mm |
| Response time | β₯ 70 ms |
| Protective field supplement | 65 mm |
| Type | Type 3 (IEC 61496) |
| Safety integrity level | SIL 2 (IEC 61508) |
| Category | Category 3 (EN ISO 13849) |
| Performance level | PL d (EN ISO 13849) |
| TM (mission time) | 20 years (EN ISO 13849) |
| Safe state in the event of a fault | At least one OSSD is in the OFF state. |
| Connection type | Depending on system plug |
| Universal I/Osβ | 3 |
| Outputs/OSSD pairs | 1 |
| Configuration method | PC with Safety Designer (Configuration and Diagnostic Software) |
| Configuration and diagnostics interface | USB 2.0, Mini-USB, Ethernet |
| Display elements | Graphic color display, LEDs |
| Protection class | III (EN 61140) |
| Supply voltage Vs | 24 V DC (16.8 V DC ... 30 V DC) |
| Power consumption typical | 3.9 W (without output load) |
| Dimensions (W x H x D) | 106.6 mm x 80 mm x 117.5 mm (including system plug) |
| Weight | 0.67 kg |
| Housing material | Aluminum |
| Housing color | RAL 1021 (yellow), RAL 9005 (black) |
| Optics cover material | Polycarbonate |
| Optics cover surface finish | - |
| Enclosure rating | IP65 (IEC 60529) |
| Ambient operating temperature | β10 Β°C ... +50 Β°C |
| Type of light | Pulsed laser diode |
| Wave length | 905 nm |
Sick NANS3-AAAZ30AN1 is a compact Laser Safety Scanner from Sick, designed for precise area monitoring and personal protection in industrial automation. Belonging to the nanoScan3 Core series, this intelligent safety device combines advanced scanning technology, robust construction, and reliable field evaluation to ensure safe, efficient, and space-saving operation in modern automated environments.
The Sick NanoScan3 Core Safety Laser Scanner NANS3-AAAZ30AN1 offers a protective field range of 3 m and a warning field range of up to 10 m, providing dependable detection of obstacles and human presence. With a wide 275Β° scanning angle and a high angular resolution of 0.17Β°, it delivers accurate coverage even in tight or complex layouts. The unit supports configurable resolutions from 20 mm to 200 mm, allowing engineers to tailor detection precision as per application needs. Operating on 24 V DC with a typical power consumption of just 3.9 W, it ensures energy efficiency while maintaining fast response times of 70 ms. Built with an aluminum housing and polycarbonate optics cover, the scanner meets IP65 protection standards, making it suitable for demanding industrial environments. The device integrates seamlessly through USB 2.0 and Ethernet interfaces and can be configured using Safety Designer Software for quick setup, diagnostics, and monitoring. Certified to Type 3 (IEC 61496), SIL 2, and PL d safety levels, the NANS3-AAAZ30AN1 ensures long-term reliability and compliance with international machine safety standards.
The Sick NANS3-AAAZ30AN1 Laser Safety Scanner is widely used in automated guided vehicles (AGVs), robotic workstations, packaging lines, and factory automation systems. Its small size and wide scanning range make it ideal for safeguarding moving machinery, detecting intrusions, and preventing collisions in dynamic production zones. Engineers often prefer this model for its easy integration and minimal maintenance requirements, especially in space-constrained areas. Whether itβs protecting operators working near robotic arms or securing mobile robots in logistics facilities, the Sick Laser Safety Scanner delivers precise, reliable safety coverage that enhances overall plant productivity and ensures compliance with global safety norms.
For engineers seeking more details, the Sick NANS3-AAAZ30AN1 datasheet and NANS3-AAAZ30AN1 manual provide complete technical and wiring information to support design and commissioning. Before purchasing, itβs recommended to verify the latest NANS3-AAAZ30AN1 price from trusted industrial suppliers for accurate budgeting. The Sick NanoScan3 Core Safety Laser Scanner NANS3-AAAZ30AN1 remains a preferred choice for automation professionals due to its proven safety performance, compact form factor, and exceptional reliability in mission-critical applications.
