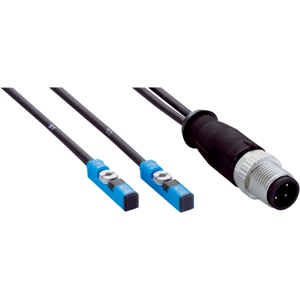

MZT8-03VPS-KRTS12: Compact Cylinder Sensors for Short Stroke Cylinders
Technical Specifications of Compact Cylinder Sensors for Short Stroke Cylinders MZT8-03VPS-KRTS12:
| Housing length | 24 mm |
| Switching output | PNP |
| Output function | NO |
| Connection type | Cable with connector M8, 4-pin, with knurled nuts, 0.75 m |
Compact Cylinder Sensors for Short Stroke Cylinders MZT8-03VPS-KRTS12 Technical Specifications:
| Specification | Value |
|---|---|
| Cylinder type | T-slot |
| Cylinder types with adapter | Profile cylinderTie rod cylinderRound body cylinderDovetail groove cylinderSMC rail CDQ2SMC rail ECDQ2 |
| Housing length | 24 mm |
| Switching output | PNP |
| Switching frequency | 1,000 Hz |
| Output function | NO |
| Electrical wiring | DC 4-wire |
| Enclosure rating | IP68 |
| Special features | Two sensor heads on one plug |
| Supply voltage | 10 V DC ... 30 V DC |
| Power consumption | 10 mA, without load |
| Voltage drop | ≤ 2.2 V |
| Continuous current Ia | ≤ 200 mA |
| Protection class | III |
| Time delay before availability | 25 ms |
| Response sensitivity, typ. | 2.6 mT |
| Overrun distance, typ. | 3 mm |
| Hysteresis, typ. | ≤ 0.5 mT |
| Reproducibility | ≤ 0.1 mT |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Status indicator LED | Yes |
| Power-up pulse protection | Yes |
| Ambient operating temperature | –30 °C ... +80 °C |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| EMC | According to EN 60947-5-2 |
| Connection type | Cable with connector M8, 4-pin, with knurled nuts, 0.75 m |
| Conductor cross section | 0.14 mm² |
| Cable diameter | Ø 2.9 mm |
| Bending radius | With fixed installation > 8 x cable diameter |
| Cable outlet | Axial |
| MaterialHousingPlastic, PA12CablePUR | Material |
| Housing | Plastic, PA12 |
| Cable | PUR |
Ask for the Pricing of Compact Cylinder Sensors for Short Stroke Cylinders MZT8-03VPS-KRTS12 at unbeatable prices. Detailed Specifications of MZT8-03VPS-KRTS12 features housing length of 24 mm and PNP switching output, designed for high-speed industrial applications with a switching frequency of 1,000 Hz. The sensor features a NO output function and operates using a DC 4-wire electrical system. Rated IP68 , it ensures excellent protection in harsh environments. The supply voltage ranges from 10 V DC ... 30 V DC, while the power consumption is a minimal 10 mA, without load. The voltage drop is ≤ 2.2 V, and the continuous current (Ia) is ≤ 200 mA, ensuring energy efficiency. The connection type is a Cable with connector M8, 4-pin, with knurled nuts, 0.75 m for secure attachment. The housing is made from durable Plastic, PA12, and the cable is constructed from flexible PUR material. Now's the Time to Secure a Quote for your requirement of Compact Cylinder Sensors for Short Stroke Cylinders. We're committed to offering more favorable pricing and more responsive support than other Traders.
