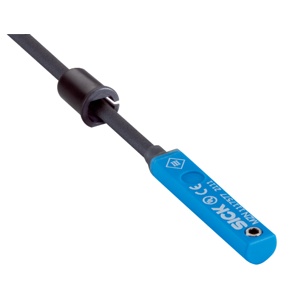

MZN-03VPS-KWB: Sick MZN with Space-Saving Mounting Design
Technical specifications of Sick MZN with Space-Saving Mounting Design MZN-03VPS-KWB o620#4068kvm:
| Cylinder Type | IMI Norgren slot |
| Supply Voltage | 10 V DC ... 30 V DC |
| Power Consumption | 10 mA, without load |
| Enclosure Rating | IP67 |
| Continuous Current Ia | ≤ 100 mA |
| Specification | Value |
|---|---|
| Cylinder Type | IMI Norgren slot |
| Cylinder Types with Adapter | Round body cylinder |
| Housing Length | 29.5 mm |
| Switching Output | PNP |
| Switching Frequency | 1,000 Hz |
| Output Function | NO |
| Electrical Wiring | DC 3-wire |
| Enclosure Rating | IP67 |
| Supply Voltage | 10 V DC ... 30 V DC |
| Power Consumption | 10 mA, without load |
| Voltage Drop | ≤ 2 V |
| Continuous Current Ia | ≤ 100 mA |
| Protection Class | III |
| Response Sensitivity (Typ.) | 2.8 mT |
| Overrun Distance (Typ.) | 9 mm |
| Hysteresis (Typ.) | 0.8 mT |
| Reproducibility | ≤ 0.1 mT |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Status Indicator LED | Yes |
| Ambient Operating Temperature | –40 °C ... +80 °C |
| Shock and Vibration Resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| EMC | According to EN 60947-5-2 |
| Connection Type | Cable, 3-wire, wire end ferrule, 5 m |
| Cable Diameter | Ø 2.9 mm |
| Bending Radius | With fixed installation > 10 x cable diameter |
| Cable Outlet | Axial |
| Housing | Plastic |
| Cable | PVC |
