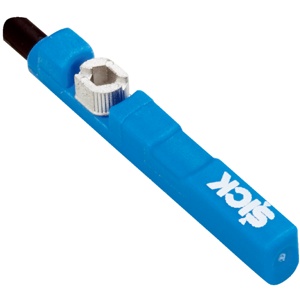

MZC1-2V2PS-KUB: Sick Sensors For Profile Cylinders Use
Technical Specifications of Sick Sensors For Profile Cylinders Use MZC1-2V2PS-KUB:
| Housing Length | 23.7 mm |
| Switching Output | PNP |
| Output Functions | NO |
| Conection Types | Cable, 3-wire, 5 m |
Sick Sensors For Profile Cylinders Use MZC1-2V2PS-KUB Technical Specifications:
| Specification | Value |
|---|---|
| Cylinder type | C-slot |
| Cylinder types with adapter | SMC rail CDQ2SMC rail ECDQ2Round body cylinderProfile cylinders and tie-rod cylinders |
| Housing length | 23.7 mm |
| Switching output | PNP |
| Switching frequency | 1,000 Hz |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP68 IP69K |
| Supply voltage | 10 V DC ... 30 V DC |
| Power consumption | 8 mA, without load |
| Voltage drop | ≤ 2.5 V |
| Continuous current Ia | ≤ 100 mA |
| Protection class | III |
| Response sensitivity, typ. | 2.2 mT |
| Overrun distance, typ. | 4 mm |
| Hysteresis, typ. | ≤ 0.8 mT |
| Reproducibility | ≤ 0.1 mT |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Status indicator LED | Yes |
| Power-up pulse protection | Yes |
| Ambient operating temperature | –30 °C ... +80 °C |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| EMC | According to EN 60947-5-2 |
| Connection type | Cable, 3-wire, 5 m |
| Conductor cross section | 0.09 mm² |
| Cable diameter | Ø 2.2 mm |
| Bending radius | With fixed installation > 2 x cable diameter |
| Drag chain parameters | Traversing speed max. 3 m/s |
| Cable outlet | Axial |
| Housing | Plastic |
| Cable | PUR |
Mail Us for your needs in Sick Sensors For Profile Cylinders Use MZC1-2V2PS-KUB with budget-friendly prices. The Main Technical Parameters of MZC1-2V2PS-KUB include housing length of 23.7 mm and a PNP switching output for reliable industrial use. With a switching frequency of 1,000 Hz, these sensors ensure fast response times. The output function is (normally open) NO and operates with DC 3-wire electrical wiring. Rated at IP68 IP69K, these sensors are protected against dust and water ingress, making them suitable for harsh environments. The supply voltage ranges from 10 V DC ... 30 V DC, with a power consumption of 8 mA, without load. The voltage drop is ≤ 2.5 V, and the continuous current Ia is ≤ 100 mA. The connection type features a Cable, 3-wire, 5 m and cable diameter of Ø 2.2 mm. The housing is made of durable Plastic, while the cable is constructed from high-quality PUR. Customize Your Experience with a Quote for your requirement of Sick Sensors For Profile Cylinders Use. Experience the difference with our competitive pricing and superior support over other Suppliers.
