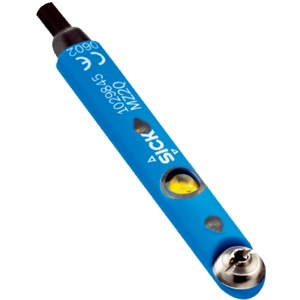

MZ2Q-TSLPSKQ0: MZ2Q-T Cylinder Sensors for T-Slot Pneumatic Cylinders
Technical Specifications of MZ2Q-T Cylinder Sensors for T-Slot Pneumatic Cylinders MZ2Q-TSLPSKQ0:
| Housing length | 40 mm |
| Switching output | 2 x PNP |
| Output function | NO |
| Connection type | Cable with connector M12, 4-pin, with knurled nuts, 0.3 m |
MZ2Q-T Cylinder Sensors for T-Slot Pneumatic Cylinders MZ2Q-TSLPSKQ0 Technical Specifications:
| Specification | Value |
|---|---|
| Cylinder type | T-slot |
| Detection zone | 0 mm ... 50 mm; 0 mm ... 50 mm |
| Cylinder types with adapter | Profile cylinderTie rod cylinderRound body cylinderDovetail groove cylinderSMC rail CDQ2SMC rail ECDQ2 |
| Housing length | 40 mm |
| Switching output | 2 x PNP |
| Output function | NO |
| Electrical wiring | DC 4-wire |
| Enclosure rating | IP67 |
| Teach-in control panel | Teaching in switching points 1 and 2 |
| Supply voltage | 15 V DC ... 30 V DC |
| Power consumption | Typ. 25 mA, without load |
| Voltage drop | ≤ 2.2 V |
| Continuous current Ia | ≤ 100 mA |
| Protection class | III |
| Hysteresis, typ. | 1 mT |
| Reproducibility | ≤ 0.1 mT |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Status indicator LED | Yes |
| Teach-in | Yes |
| Power-up pulse protection | Yes |
| Ambient operating temperature | –20 °C ... +75 °C |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| EMC | According to EN 60947-5-2 |
| Connection type | Cable with connector M12, 4-pin, with knurled nuts, 0.3 m |
| Cable diameter | Ø 2.6 mm |
| Bending radius | With fixed installation > 5 x cable diameter |
| Cable outlet | Axial |
| MaterialHousingPlasticCablePUR | Material |
| Housing | Plastic |
| Cable | PUR |
Get A Quote for MZ2Q-T Cylinder Sensors for T-Slot Pneumatic Cylinders MZ2Q-TSLPSKQ0 at the best price. Here are the brief Technical Specifications of MZ2Q-TSLPSKQ0 are housing length of 40 mm and 2 x PNP switching outputs. The sensor is designed with a NO output function and operates using a DC 4-wire electrical wiring system. Rated IP67 , it is built to withstand demanding industrial environments. The supply voltage ranges from 15 V DC ... 30 V DC, while the power consumption is Typ. 25 mA, without load. The voltage drop is ≤ 2.2 V, and the continuous current (Ia) is ≤ 100 mA, ensuring efficient energy usage. The connection type is Cable with connector M12, 4-pin, with knurled nuts, 0.3 m, making it suitable for reliable connections. The housing is made from durable Plastic, and the cable Material is PUR, providing robust and long-lasting performance. It's Time to get a Quote for your requirement of MZ2Q-T Cylinder Sensors for T-Slot Pneumatic Cylinders. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
